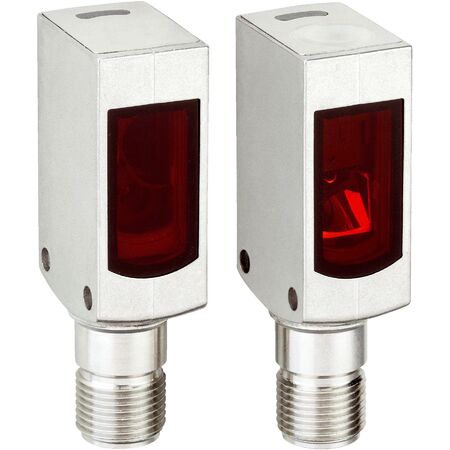

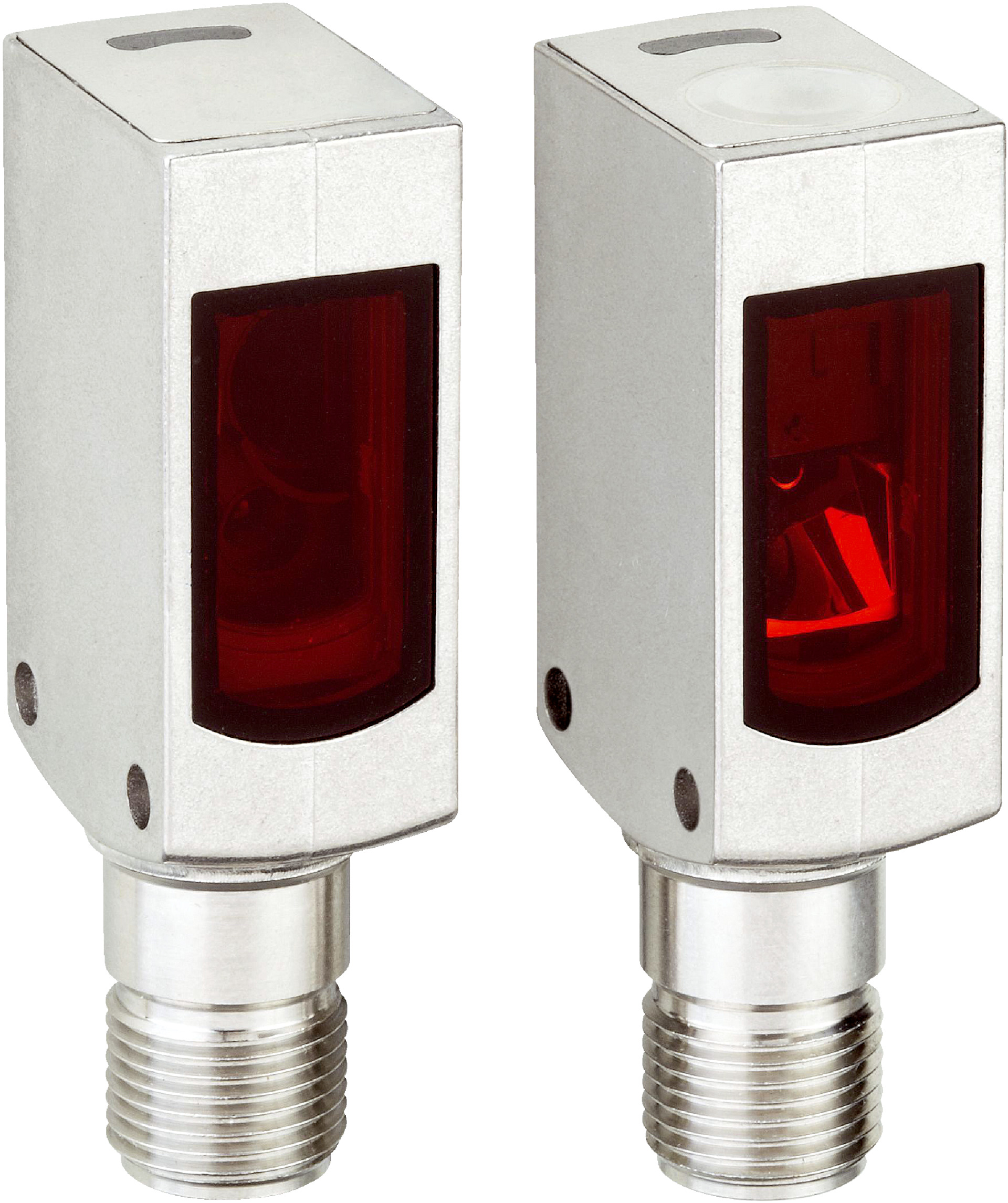

Miniature Photoelectric Through Beam Sensor | 60m Scanning Distance | Stainless Steel Wash-down Design | PNP Output | by SICK
The Miniature Photoelectric Through Beam Sensor is designed for precision detection in hygienic environments, featuring a scanning distance of up to 60 meters and a durable stainless steel wash-down housing. With a fast response time of ≤ 0.5 ms and a single teach-in button for easy adjustment, this sensor is perfect for industrial automation and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Photoelectric Through Beam Sensor | 60m Scanning Distance | Stainless Steel Wash-down Design | PNP Output | by SICK
Brand: SICK
SKU: 2064103
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Laser sensor, Washdown sensor, PNP photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 60 m
- Light source: Laser, visible red light, wavelength 650 nm
- Light spot size: Ø 1 mm at 500 mm distance
- Laser class: 1 (IEC 60825-1 compliant)
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Connection: Male M12, 4-pin connector
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 55.4mm x 22.2mm x 15.3mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 60 meters
- Single teach-in button for easy adjustment
- Washdown stainless steel housing (V4A, 316L) for hygienic environments
- IP66, IP67, IP68, IP69K rated for robust protection
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- PNP output with light/dark switching mode
- Laser class 1 safety compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Hygienic and washdown zones
- Detecting small objects
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Energy-efficient laser light source minimizes power consumption
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WE4SL-3P2432V Miniature Photoelectric Through Beam Sensor is available for immediate purchase, ideal for hygienic, washdown, and industrial object detection applications.
