Miniature Power Relay 12A 2CO | 24V AC Coil | LED & Mechanical Indicator by NHP
Miniature power relay with 12A current and 24V AC coil—ideal for industrial automation and control panels. Built for reliability, with LED indication and mechanical indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

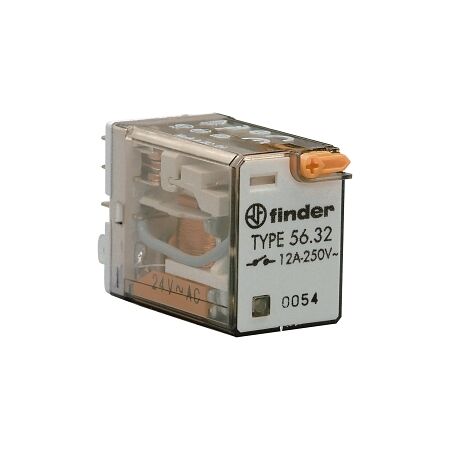

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 24V AC Coil with PB plus LED plus Mechanical Ind
Brand: NHP
SKU: 5632005424VAC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC-1: 3000 VA
- Rated Switching Power at AC-15 (230 V): 700 VA
- Control Supply Voltage: 24 V AC
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 28mm x 38mm x 21mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Plug-in connection for easy installation.
- High electrical life rated for 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 24V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
