Miniature Power Relay 12A 2CO | 24V DC Coil | High Electrical Life by NHP
Miniature power relay with 12A nominal current and 24V DC coil—ideal for automation and control panels. Built for reliability, with high electrical life and easy plug-in installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

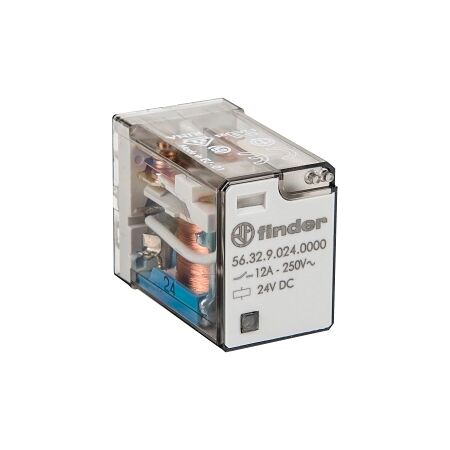

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 24V DC Coil
Brand: NHP
SKU: 563224VDC
Alternatively Known As: Miniature Power Relay, 12A Relay, DC Coil Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Number of Contacts: 2 (Change Over Contact)
- Rated Switching Power at AC-1: 3000 VA
- Rated Switching Power at AC-15 (230 V): 700 VA
- Breaking Capacity at DC-1 (30 V): 12 A
- Breaking Capacity at DC-1 (110 V): 0.5 A
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 27.7mm x 37.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 12A nominal current.
- Plug-in connection for easy installation.
- High electrical life of 100,000 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 24V DC Coil is available now for immediate purchase, suitable for various industrial and commercial applications.
