Miniature Power Relay 12A 2CO | 48V DC Coil | LED & Mechanical Indicator by NHP
Miniature power relay with 12A current and 48V DC coil—ideal for automation and control panels. Built for high electrical life with LED indication and mechanical indicator, suitable for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

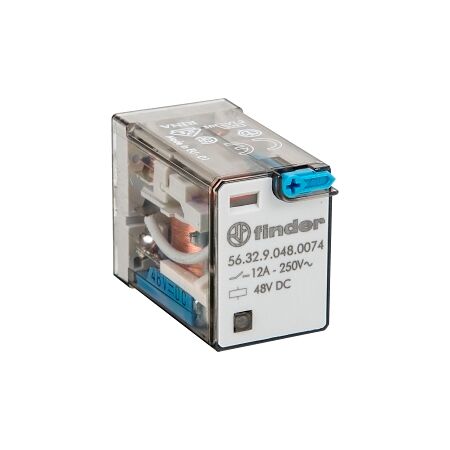

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 48V DC Coil with PB plus LED plus Mechanical Ind
Brand: NHP
SKU: 5632007448VDC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 3000 VA
- Rated Switching Power at AC 15 (230 V): 700 VA
- Breaking Capacity at DC 1 (30 V): 12 A
- Breaking Capacity at DC 1 (110 V): 0.5 A
- Control Supply Voltage (US) at DC: 48 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life Service Cycles: 50,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 27.7mm x 37.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- High electrical life of 100,000 cycles.
- Suitable for plug-in socket mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 48V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
