Miniature Power Relay 12A 4CO | 240V AC Coil | Compact Design by NHP
Miniature power relay with 12A current and 240V AC coil—ideal for industrial automation and control panels. Built for high electrical life, with compact design for easy panel mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

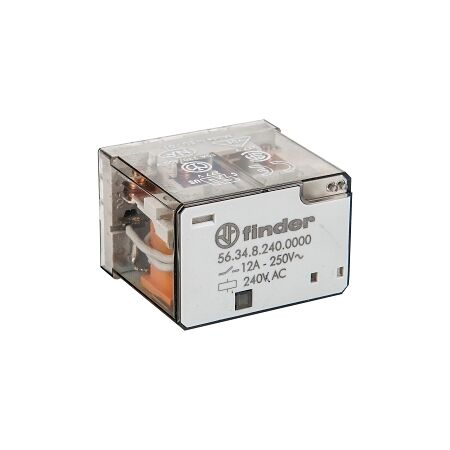

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 4CO 240V AC Coil
Brand: NHP
SKU: 5634240VAC
Alternatively Known As: Miniature Power Relay, Switching Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC-1: 3000 VA
- Rated Switching Power at AC-15 (230 V): 700 VA
- Breaking Capacity at DC-1 (30 V): 12 A
- Breaking Capacity at DC-1 (110 V): 0.5 A
- Control Supply Voltage: 240 V AC
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 27.7mm x 37.1mm x 40.8mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 4 changeover contacts.
- High electrical life rated for 100,000 cycles.
- Compact design suitable for panel mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 4CO 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
