Miniature Relay 16A 1 CO | 110V AC Coil | LED & Mech. Indicator by NHP
Miniature relay with 16A current and 110V AC coil—ideal for industrial automation and control panels. Built for reliable switching, with LED indication and mechanical indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

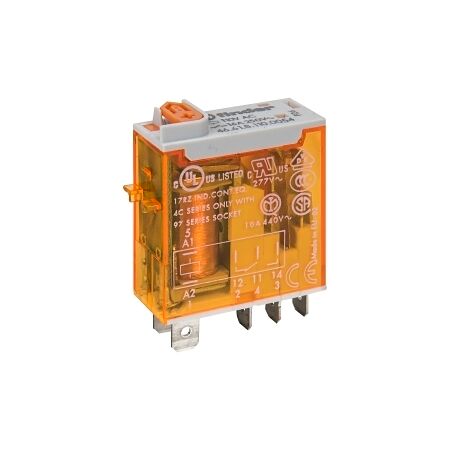

Product Name/Title: Finder 46 Series Miniature Relay 16A 1 CO 110V AC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 46610054110VAC
Alternatively Known As: Miniature Relay, 16A Relay, AC Coil Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 440 V
- Number of Contacts: 1 CO
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 12 A
- Breaking Capacity at DC 1 110 V: 0.5 A
- Control Supply Voltage: 110 V AC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Plug-in connection for easy installation.
- Rated for 16A with a 110V AC coil.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 16A 1 CO 110V AC Coil is available now for immediate purchase, suitable for various industrial and commercial applications.
