Trade Discount 25%

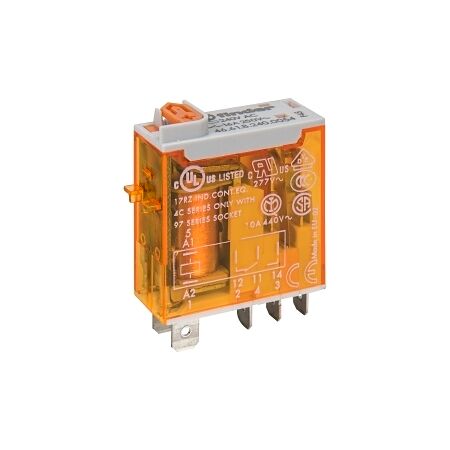

Miniature Relay 16A 1 CO | 240V AC Coil | LED & Mech. Indicator by NHP
Miniature relay with 16A nominal current and 240V AC coil—ideal for industrial automation and control panels. Built for reliable switching, with LED and mechanical indicators for operational status.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 46 Series Miniature Relay 16A 1 CO 240V AC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 46610054240VAC
Alternatively Known As: Miniature Relay, Switching Relay, Panel Mount Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 440 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 12 A
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 16A nominal current with 1 changeover contact.
- LED indication for operational status.
- Mechanical indicator for enhanced visibility.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 16A 1 CO 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
