Trade Discount 24%
Miniature Relay 16A 1 CO | 24V DC Coil | LED & Mech. Indicator by NHP
Miniature relay with 16A nominal current and 24V DC coil—ideal for industrial automation and control panels. Built for reliability, with LED status indication and mechanical visibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

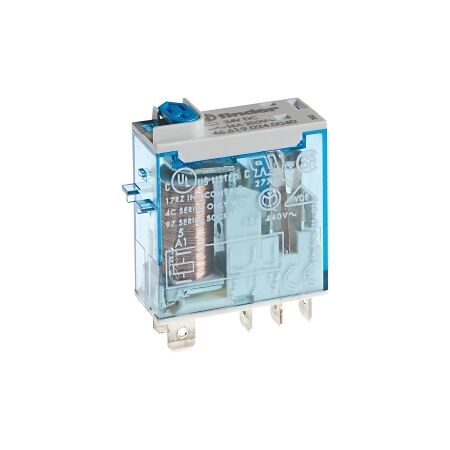

Product Name/Title: Finder 46 Series Miniature Relay 16A 1 CO 24V DC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 4661007424VDC
Alternatively Known As: Miniature Relay, 16A Relay, DC Coil Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 440 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 12 A
- Breaking Capacity at DC 1 110 V: 0.5 A
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life Service Cycles: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 16A nominal current with 1 changeover contact.
- LED indication for operational status.
- Mechanical indicator for enhanced visibility.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 16A 1 CO 24V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
