Miniature Relay 16A 1 CO | 48V AC Coil | LED & Mech. Indicator by NHP
Miniature relay with 16A nominal current and 48V AC coil—ideal for industrial automation and commercial HVAC systems. Built for reliable switching, with LED and mechanical indicators for easy status monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

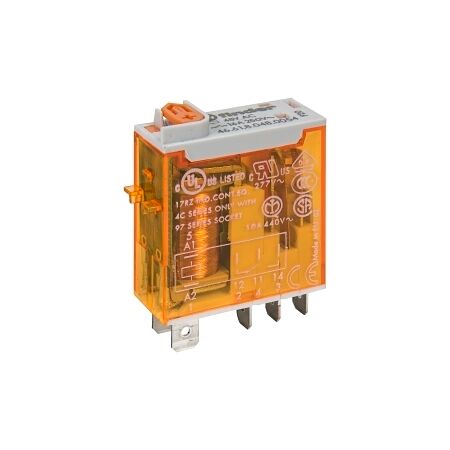

Product Name/Title: Finder 46 Series Miniature Relay 16A 1 CO 48V AC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 4661005448VAC
Alternatively Known As: Miniature Relay, Power Relay, Switching Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 440 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 12 A
- Breaking Capacity at DC 1 110 V: 0.5 A
- Control Supply Voltage: 48 V AC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 16A nominal current with 1 changeover contact.
- LED indication and mechanical indicator for status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 16A 1 CO 48V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
