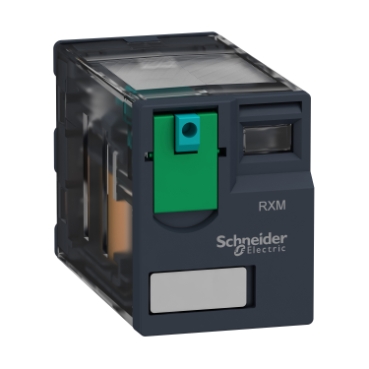

Miniature Relay 2C/O 24V DC | 12A Switching Capacity | Compact Design | by Clipsal
The Miniature Relay 2C/O 24V DC is designed for reliable control in industrial automation and building management systems. With a 12A switching capacity and a compact plug-in design, it features a mechanical indicator and a manual test button for easy maintenance. Ideal for control circuits and switching applications, this relay ensures efficient operation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Relay 2C/O 24V DC | 12A Switching Capacity | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHRXM2AB1BD
Alternatively Known As: Miniature relay, RXM relay, 2C/O relay, 24VDC relay, plug-in relay, SCHRXM2AB1BD
Technical Specifications
- Contact configuration: 2 changeover (2C/O)
- Coil voltage: 24V DC
- Contact current: 12A
- Contact material: AgNi (Silver Nickel)
- Mechanical indicator: Yes
- Manual test button: Yes
- Dielectric strength: 2500V AC (between coil and contacts)
- Operating temperature: -40°C to +55°C
- Mounting type: Plug-in
- Insulation resistance: >100 MΩ at 500V DC
- Dimensions (H x L x W): 35.5mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- Miniature plug-in relay with 2 changeover (2C/O) contacts
- 24V DC coil voltage
- 12A switching capacity
- Compact design for space-saving installation
- Mechanical indicator for relay status
- Manual test button for easy maintenance
- Transparent cover for visual inspection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure correct wiring and safe operation.
Applications
- Industrial automation panels
- Control circuits
- Building management systems
- Switching and interface applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- Low power consumption coil for energy efficiency
- RoHS compliant, minimizing hazardous substances
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony RXM Miniature Relay 2C/O 24VDC (SCHRXM2AB1BD) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
