Miniature Relay 8A 2 CO | 24V DC Coil | LED & Mech. Indicator by NHP
Miniature relay with 24V DC coil and 8A current—ideal for industrial automation and control panels. Built for reliability, with LED indication, mechanical indicator, and high life cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

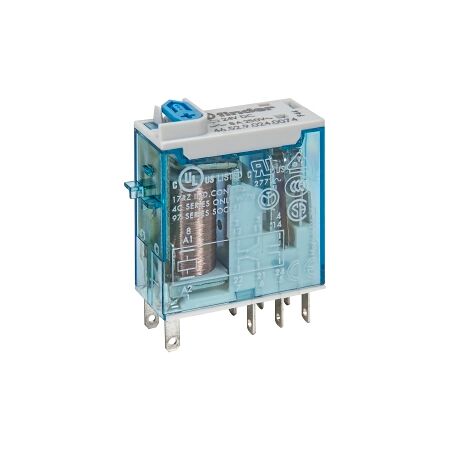

Product Name/Title: Finder 46 Series Miniature Relay 8A 2 CO. 24V DC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 4652007424VDC
Alternatively Known As: Miniature Relay, 24V Relay, Finder Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage AC: 440 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 2000 VA
- Rated Switching Power at AC 15 (230 V): 350 VA
- Breaking Capacity at DC 1 (30 V): 6 A
- Breaking Capacity at DC 1 (110 V): 0.5 A
- Control Supply Voltage: 24 V DC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Plug-in connection for easy installation.
- High electrical and mechanical life cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 8A 2 CO. 24V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
