Miniature Relay 8A 2 CO | 12V DC Coil | LED & Mech. Indicator by NHP
Miniature relay with 8A current and 12V DC coil—ideal for automation and control panels. Built for reliability, with LED indication and mechanical indicator for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

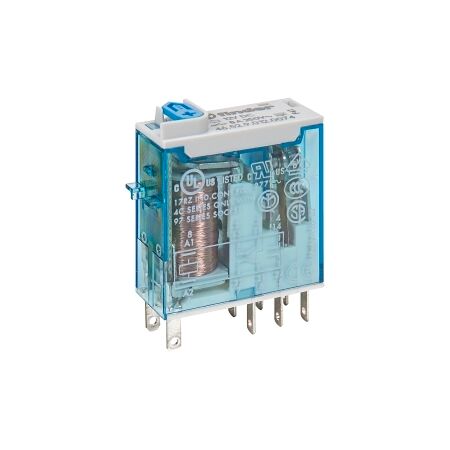

Product Name/Title: Finder 46 Series Miniature Relay 8A 2 CO 12V DC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 4652007412VDC
Alternatively Known As: Miniature Relay, 12V DC Relay, Finder Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 440 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC-1: 2000 VA
- Rated Switching Power at AC-15 (230 V): 350 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.5 A
- Control Supply Voltage: 12 V DC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Polarity free drive polarization for versatile applications.
- High electrical life rated for 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 8A 2 CO 12V DC Coil is available now for immediate purchase, suitable for various industrial and commercial applications.
