Trade Discount 25%
Miniature Relay 8A 2 CO | 240V AC Coil | LED & Mech. Indicator by NHP
Miniature relay with 8A current and 240V AC coil—ideal for industrial automation and control systems. Built for reliability, with LED indication, mechanical indicator, and high electrical life for 100,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

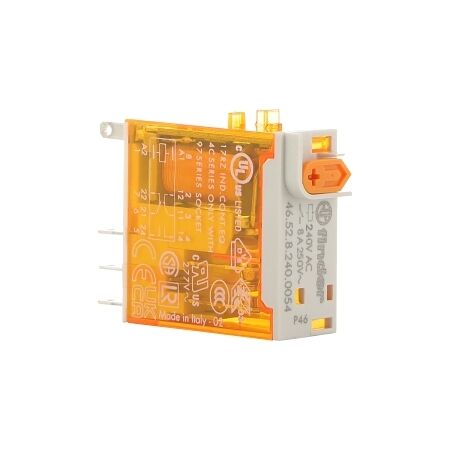

Product Name/Title: Finder 46 Series Miniature Relay 8A 2 CO 240V AC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 46520054240VAC
Alternatively Known As: Miniature Relay, 8A Relay, Finder Relay, Power Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 440 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 2000 VA
- Rated Switching Power at AC 15 (230 V): 350 VA
- Breaking Capacity at DC 1 (30 V): 6 A
- Breaking Capacity at DC 1 (110 V): 0.5 A
- Control Supply Voltage: 240 V AC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Plug-in connection for easy installation.
- High electrical life rated for 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation and control systems
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 8A 2 CO 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
