Miniature Relay 8A 2 CO | 48V DC Coil | LED & Mech. Indicator by NHP
Miniature relay with 8A nominal current and 48V DC coil—ideal for industrial automation and control panels. Built for reliability, with LED status indication and mechanical visibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

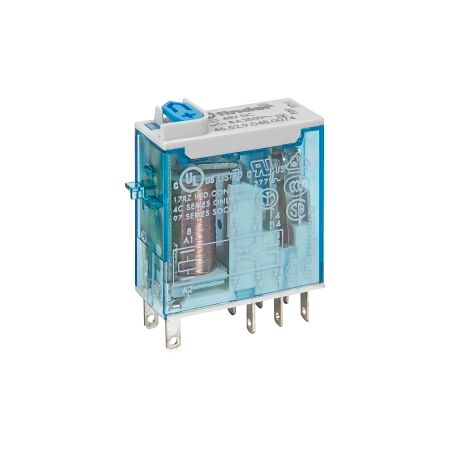

Product Name/Title: Finder 46 Series Miniature Relay 8A 2 CO 48V DC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 4652007448VDC
Alternatively Known As: Miniature Relay, 48V DC Relay, Finder Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 440 V
- Rated Switching Power at AC 1: 2000 VA
- Rated Switching Power at AC 15 (230 V): 350 VA
- Breaking Capacity at DC 1 (30 V): 6 A
- Breaking Capacity at DC 1 (110 V): 0.5 A
- Control Supply Voltage (DC): 48 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 8A nominal current with 2 changeover contacts.
- LED indication for operational status.
- Mechanical indicator for enhanced visibility.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 8A 2 CO 48V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
