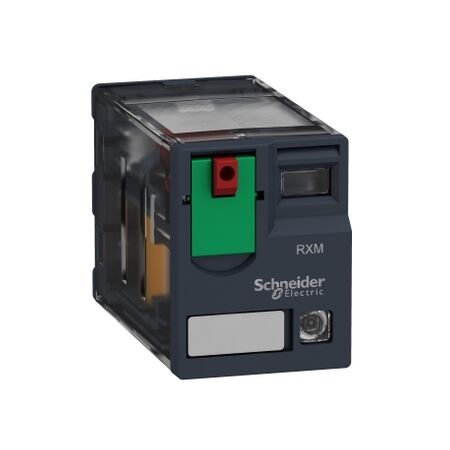

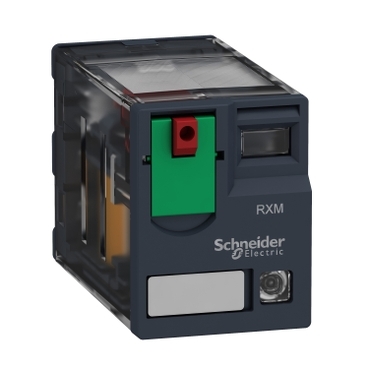

Miniature Relay LED 4CO | 120V AC Coil Voltage | 6A Switching Capacity | LED Indicator | @1 | by Clipsal
The Miniature Relay LED 4CO is designed for reliable electrical switching applications, featuring a 120V AC coil voltage and a 6A switching capacity per contact. With its LED indicator for coil status and compact design, it's perfect for industrial automation panels and control cabinets, ensuring efficient performance and long operational life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Relay LED 4CO | 120V AC Coil Voltage | 6A Switching Capacity | LED Indicator | @1 | by Clipsal
Brand: Clipsal
SKU: SCHRXM4GB2F7
Alternatively Known As: ['Harmony RXM relay', 'Clipsal 4CO relay', 'Miniature plug-in relay 120V AC', 'SCHRXM4GB2F7 relay', 'Clipsal RXM4GB2F7']
Technical Specifications
- Contact configuration: 4 C/O (4PDT)
- Coil voltage: 120V AC
- Contact current: 6A
- Plug-in mounting
- LED indicator for coil status
- Dielectric strength: 2500V AC between coil and contacts
- Operating temperature: -40°C to +55°C
- Mechanical durability: 10,000,000 cycles
- Dimensions (H x L x W): 36mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- Miniature plug-in relay with 4 changeover (C/O) contacts
- LED indicator for coil status
- 120V AC coil voltage
- 6A switching capacity per contact
- Compact design for space-saving installation
- Reliable Harmony RXM series performance
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct wiring and safety compliance.
Applications
- Industrial automation panels
- Building management systems
- Control cabinets
- Switchboards
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- Low power consumption coil for energy efficiency
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Miniature Relay LED 4CO Low Sw SCHRXM4GB2F7 is available for immediate purchase. Ideal for industrial control panels, automation systems, and electrical switchboards.
