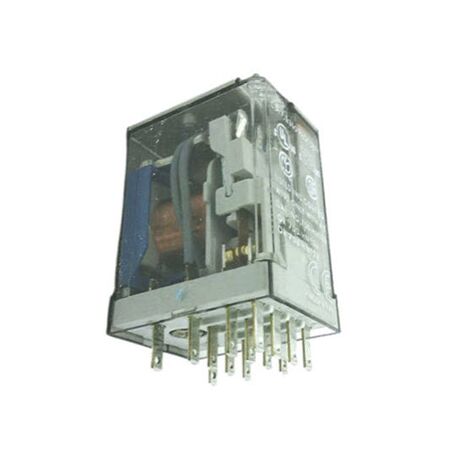

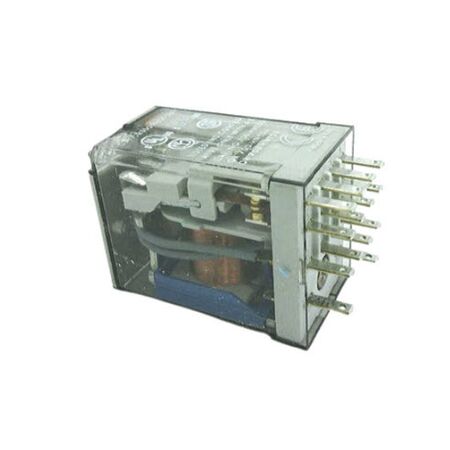

Miniature Square Base General Purpose Relay | 4PDT Configuration | 7 Amp Current Rating | 110 VDC Coil Voltage | by Allen-Bradley
The Miniature Square Base General Purpose Relay is designed for reliable electrical switching in industrial control systems and automation equipment. Featuring a 4PDT configuration and a 7 Amp current rating, this relay operates at 110 VDC and 50/60 Hz, making it ideal for various applications. With 14 blade terminals, it ensures secure connections and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Relay Type: General Purpose
- Base Type: Miniature Square
- Poles: 4
- Contact Configuration: 4PDT
- Terminals: 14 blade terminals
- Current Rating: 7 Amp
- Coil Voltage: 110 VDC
- Frequency: 50/60 Hz
- Dimensions (H x L x W): 50mm x 40mm x 35mm
- Weight: 0.1 kg
Key Features
- Miniature square base design
- 4 pole, 4PDT configuration
- 14 blade terminals
- 7 Amp current rating
- 110 VDC coil voltage
- Operates at 50/60 Hz frequency
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 700HC14Z1 Miniature Square Base General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
