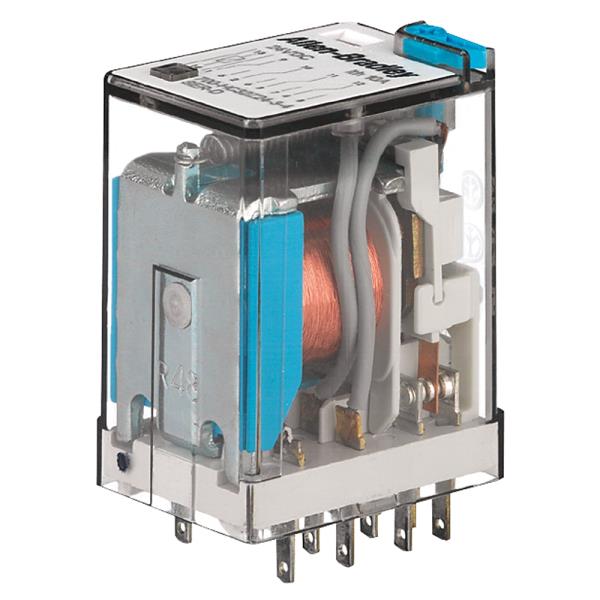

Miniature Square Base General Purpose Relay | 4PDT Configuration | 7 Amp Current Rating | 48 VDC Coil Voltage | by Allen-Bradley
The Miniature Square Base General Purpose Relay is designed for versatile applications in industrial control systems and automation equipment. Featuring a 4PDT configuration and a 7 Amp current rating, this relay operates at 48 VDC and includes a pilot light for status indication. Ideal for general electrical switching, it ensures reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Relay Type: Miniature square base
- Poles: 4
- Contact Configuration: 4PDT
- Terminals: 14 blade terminals
- Current Rating: 7 Amp
- Coil Voltage: 48 VDC
- Frequency: 50/60 Hz
- Pilot Light: Included
- Dimensions (H x L x W): 50mm x 40mm x 35mm
- Weight: 0.2 kg
Key Features
- Miniature square base design
- 4 pole, 4PDT configuration
- 14 blade terminals for versatile connections
- 7 Amp current rating
- 48 VDC coil voltage
- 50/60 Hz frequency
- Includes pilot light for status indication
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports energy-efficient control systems
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HC14Z484 Miniature Square Base General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
