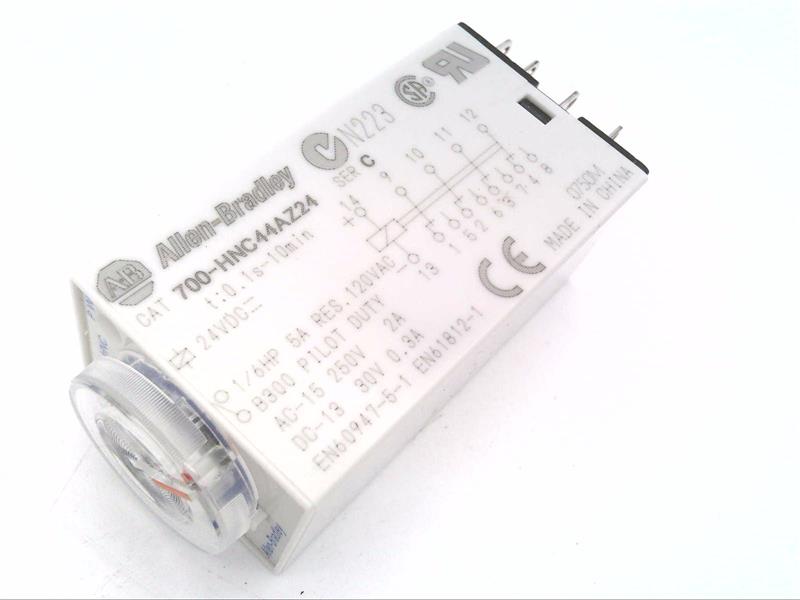

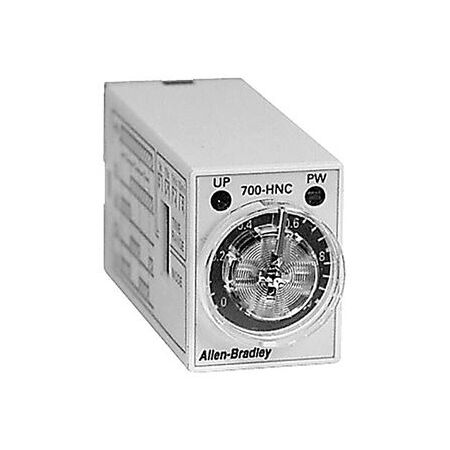

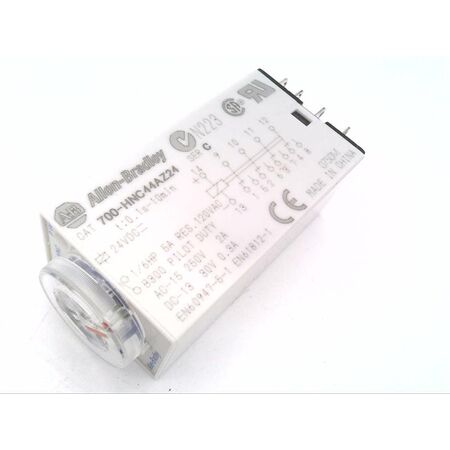

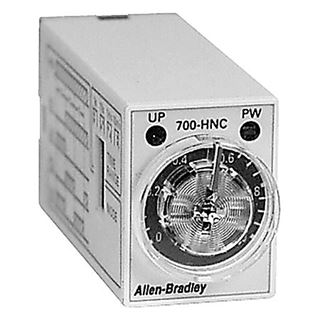

Miniature Timer Relay 24V DC | 4 Operating Modes | Socket Mounted Design | 4PDT Contact Configuration | by Allen-Bradley
The Miniature Timer Relay 24V DC is designed for precise timing control in industrial automation systems. With 4 operating modes and a socket-mounted design, it ensures easy installation and reliable performance. Ideal for manufacturing processes and electrical control panels, this relay operates on a 24V DC power supply and offers a timing range from 0.1 seconds to 10 minutes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Modes: 4
- Mounting Type: Socket mounted
- Contact Configuration: 4PDT
- Coil Voltage: 24 V DC
- Timing Range: 0.1 seconds to 10 minutes
- Dimensions (H x L x W): 60mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Miniature timer relay with 4 operating modes
- Socket mounted design for easy installation
- 4PDT (4 Pole Double Throw) contact configuration
- Operates on 24 V DC power supply
- Timing range from 0.1 seconds to 10 minutes
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure proper wiring and safety compliance.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing functions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances energy efficiency by providing precise timing control to reduce unnecessary power usage.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HNC44AZ24 Miniature Timer Relay is available now for immediate purchase, ideal for industrial automation and control panel applications.
