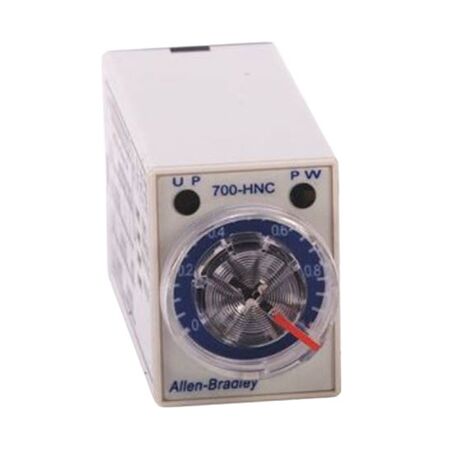

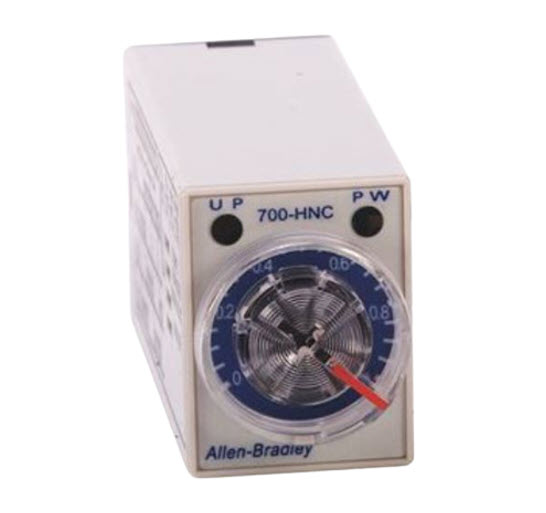

Miniature Timer Relay 24 VDC | 4 Operating Modes | Socket Mounted Design | by Allen-Bradley
The Miniature Timer Relay 24 VDC is designed for precise timing control in industrial automation systems. With 4 operating modes and a socket-mounted design, it simplifies installation and enhances efficiency in manufacturing processes. Ideal for general-purpose timing applications, this relay features 4 PDT contacts and a timing range from 0.1 seconds to 10 hours, making it a versatile choice for various machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Voltage: 24 VDC
- Contact Configuration: 4 PDT
- Operating Modes: 4
- Timing Range: 0.1 seconds to 10 hours
- Mounting Style: Socket mounted, open style
- Type: Miniature timer relay
- Dimensions (H x L x W): 60mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- Miniature timer relay with 4 operating modes
- Socket mounted design for easy installation
- 4 PDT (Pole Double Throw) contacts
- Operating voltage of 24 VDC
- Timing range from 0.1 seconds to 10 hours
- Open style mountable relay
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Socket mounted relay applications
- General purpose timing relay for machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by precise timing control in automation systems
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HNC44BZ24 Miniature Timer Relay is available for immediate purchase, ideal for industrial and automation control applications.
