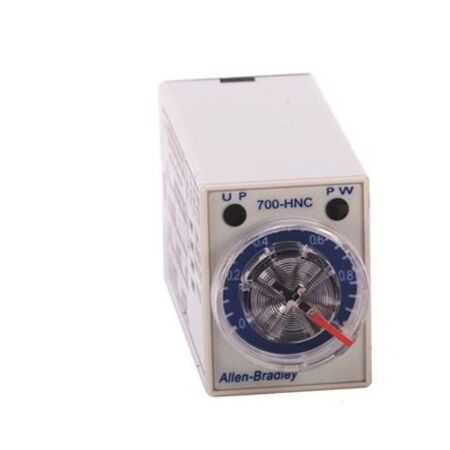

Miniature Timer Relay 4PDT | 200-230V AC | 0.1s to 10h Timing Range | by Allen-Bradley
The Miniature Timer Relay 4PDT is designed for precise timing control in industrial automation systems. Operating on 200-230V AC with a timing range from 0.1 seconds to 10 hours, this socket-mounted relay is perfect for manufacturing processes and electrical control panels. With four operating modes, it enhances energy efficiency and reduces power consumption, making it an essential component for any control system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Voltage: 200-230 V AC
- Frequency: 50/60 Hz
- Contact Configuration: 4PDT
- Timing Range: 0.1 seconds to 10 hours
- Mounting Type: Socket mounted
- Operating Modes: 4
- Dimensions (H x L x W): 60mm x 60mm x 35mm
- Weight: 0.2 kg
Key Features
- Miniature timer relay with 4 operating modes
- Socket mounted design for easy installation
- 4PDT (4 Pole Double Throw) contact configuration
- Operates on 200-230 V AC, 50/60 Hz
- Timing range from 0.1 seconds to 10 hours
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by enabling precise control of electrical circuits
- Reduces unnecessary power consumption through accurate timing control
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HNC44BA23 Miniature Timer Relay is available now for immediate purchase. Ideal for industrial automation and control panel applications.
