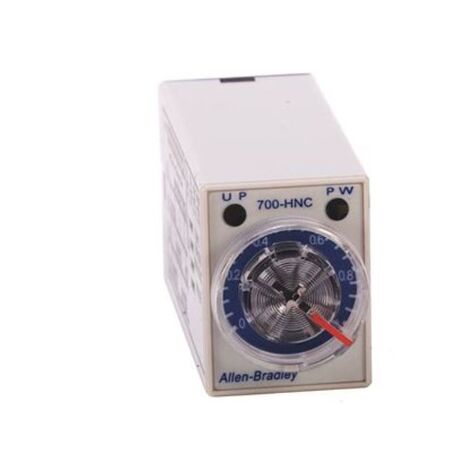

Miniature Timer Relay 4PDT | 200-230V AC | 0.1s to 10min Timing | by Allen-Bradley
The Miniature Timer Relay 4PDT is designed for precise timing control in industrial automation systems. Operating on 200-230V AC with a timing range from 0.1 seconds to 10 minutes, this socket-mounted relay is perfect for manufacturing processes and machinery requiring reliable timing functions. With four operating modes, it enhances energy efficiency and ensures compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Voltage: 200-230 V AC
- Frequency: 50/60 Hz
- Contact Configuration: 4PDT
- Operating Modes: 4
- Timing Range: 0.1 seconds to 10 minutes
- Mounting Type: Socket mounted
- Dimensions (H x L x W): 60mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- Miniature timer relay with 4 operating modes
- Socket mounted design for easy installation
- 4PDT (4 Pole Double Throw) contact configuration
- Operates on 200-230 V AC, 50/60 Hz
- Timing range from 0.1 seconds to 10 minutes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Machinery and equipment requiring precise timing functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by providing precise timing control to reduce unnecessary power usage.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HNC44AA23 Miniature Timer Relay is available now for immediate purchase. Ideal for industrial automation and control system applications.
