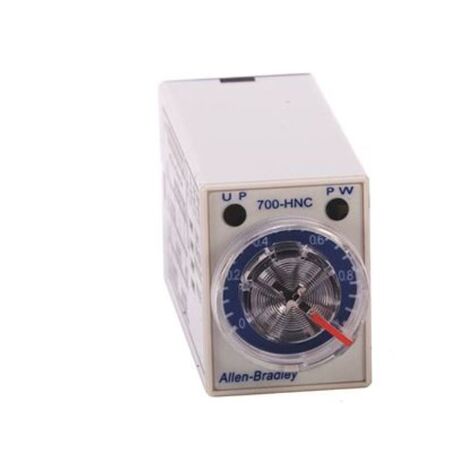

Miniature Timer Relay 4PDT | 24V AC | Socket Mounted | 4 Operating Modes | by Allen-Bradley
The Miniature Timer Relay 4PDT is designed for precise timing control in industrial automation systems, operating on 24V AC with a timing range from 0.1 seconds to 10 hours. Ideal for electrical control panels, this socket-mounted relay features 4 operating modes, ensuring efficient and reliable performance in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Voltage: 24 V AC
- Frequency: 50/60 Hz
- Contact Configuration: 4PDT
- Operating Modes: 4
- Timing Range: 0.1 seconds to 10 hours
- Mounting Type: Socket mounted
- Dimensions (H x L x W): 60mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Miniature timer relay with 4 operating modes
- Socket mounted for easy installation
- 4PDT (4 Pole Double Throw) contact configuration
- Operates on 24 V AC at 50/60 Hz
- Timing range from 0.1 seconds to 10 hours
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing functions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by enabling precise control of electrical circuits
- Reduces unnecessary power consumption through accurate timing functions
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HNC44BA24 Miniature Timer Relay is available now for immediate purchase. Ideal for industrial automation and control panel applications.
