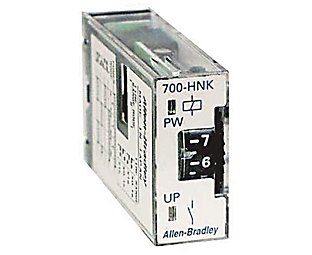

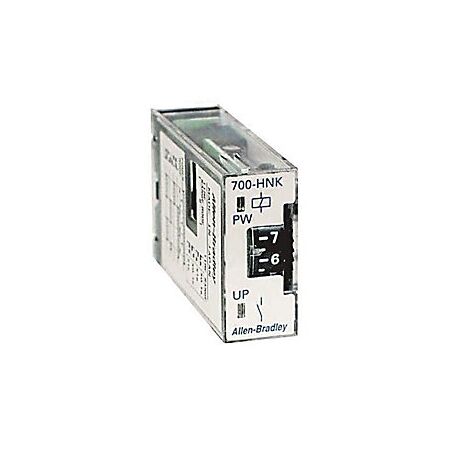

Miniature Timing Relay 12V DC | Ultra Slim Design | 4-Mode Functionality | Socket Mounted | by Allen-Bradley
The Miniature Timing Relay 12V DC is designed for precision in industrial automation control systems. With its ultra-slim design and 4-mode timing functionality, it’s perfect for applications requiring compact installations and precise timing control. Ideal for electrical control panels, this socket-mounted relay ensures easy replacement and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Timing Relay
- Mounting: Socket mounted
- Contact Configuration: SPDT
- Operating Voltage: 12 V DC
- Timing Range: 0.1 seconds to 10 minutes
- Design: Miniature, ultra-slim
- Timing Modes: 4 modes
- Dimensions (H x L x W): 35mm x 60mm x 22mm
- Weight: 0.1 kg
Key Features
- Miniature and ultra-slim design for compact installations
- 4-mode timing functionality
- Socket mounted for easy replacement
- Single Pole Double Throw (SPDT) contact configuration
- Operating voltage: 12 V DC
- Timing range from 0.1 seconds to 10 minutes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HNK41AZ12 Miniature Timing Relay is available for immediate purchase, ideal for industrial and automation control applications.
