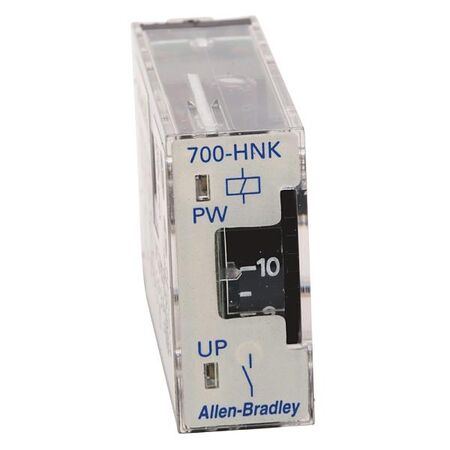

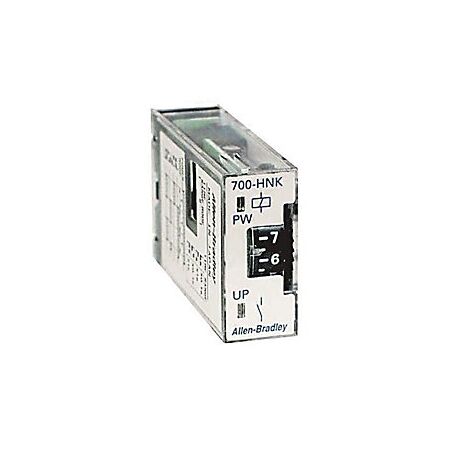

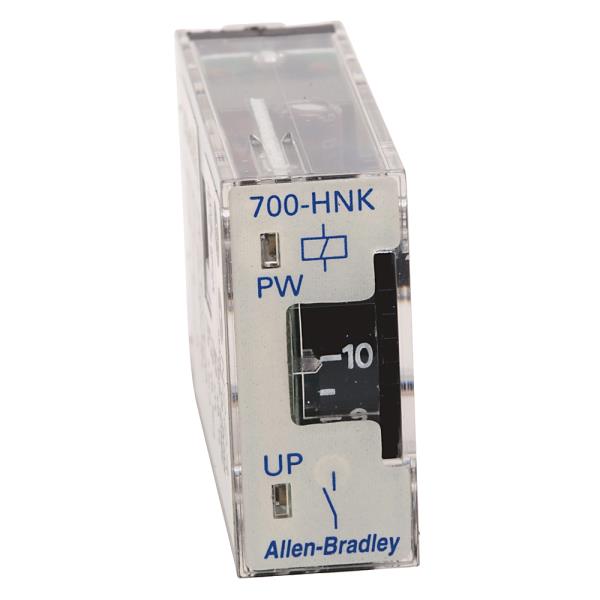

Miniature Timing Relay 24V DC | Ultra Slim Design | 4-Mode Functionality | Socket Mounted | by Allen-Bradley
The Miniature Timing Relay 24V DC is designed for precision in industrial automation, featuring an ultra-slim design and 4-mode timing functionality. Ideal for electrical control panels and manufacturing processes, this socket-mounted relay ensures easy installation and reliable performance, operating within a timing range of 0.1 seconds to 10 minutes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Timing Relay
- Mounting: Socket mounted
- Contact Configuration: DPST-N.O.
- Operating Voltage: 24 V DC
- Timing Range: 0.1 seconds to 10 minutes
- Design: Miniature ultra slim
- Timing Modes: 4 modes
- Dimensions (H x L x W): 60mm x 60mm x 22mm
- Weight: 0.1 kg
Key Features
- Miniature ultra slim design
- 4-mode timing functionality
- Socket mounted for easy installation
- DPST-N.O. contact configuration
- Operates on 24 V DC
- Timing range from 0.1 seconds to 10 minutes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage
- Low power consumption at 24 V DC
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
Available for immediate purchase, ideal for industrial automation and control panel applications.
