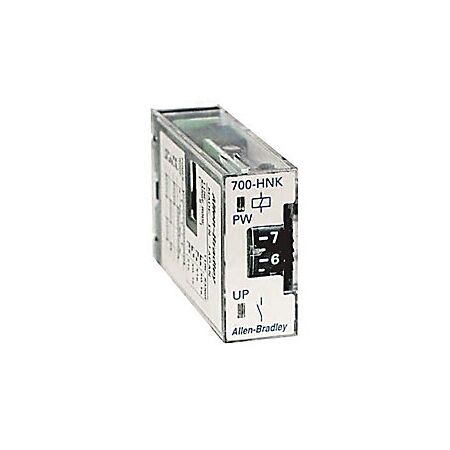

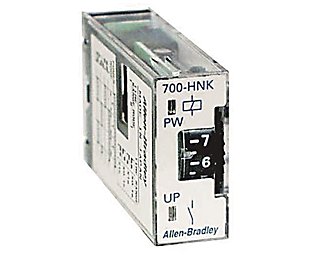

Miniature Ultra Slim Timing Relay | 24V DC | 4 Timing Modes | Socket Mounted | by Allen-Bradley
The Miniature Ultra Slim Timing Relay is designed for precise timing control in industrial automation systems. Operating at 24V DC, it features a compact design with 4 timing modes, making it ideal for manufacturing processes and electrical control panels. Its socket-mounted design allows for easy replacement, ensuring efficient operation and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Timing Relay
- Mounting: Socket mounted
- Contact Configuration: DPST-N.O.
- Voltage: 24 V DC
- Timing Range: 0.1 seconds to 10 hours
- Design: Miniature, ultra slim
- Modes: 4 timing modes
- Dimensions (H x L x W): 60mm x 60mm x 22mm
- Weight: 0.1 kg
Key Features
- Miniature and ultra slim design for space-saving installation
- 4-mode timing functionality
- Socket mounted for easy replacement
- DPST-N.O. (Double Pole Single Throw - Normally Open) contact configuration
- Operates at 24 V DC voltage
- Timing range from 0.1 seconds to 10 hours
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing functions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage and waste
- Energy efficient operation minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HNK42BZ24 Miniature Ultra Slim Timing Relay is available now for immediate purchase. Ideal for industrial automation and control panel applications.
