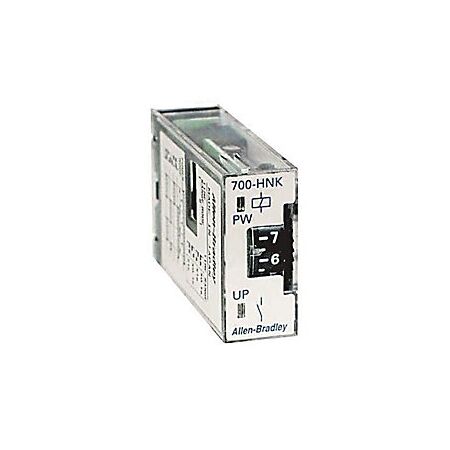

Miniature Ultra Slim Timing Relay | 4-Mode Functionality | 24V AC Operation | by Allen-Bradley
The Miniature Ultra Slim Timing Relay is designed for precise timing control in industrial automation systems. With a compact design and 4-mode functionality, it operates at 24V AC and features a DPST-N.O. contact configuration. Ideal for manufacturing processes and electrical control panels, this relay ensures efficient performance and easy socket mounting for quick replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Timing Relay
- Mounting: Socket mounted
- Contact Configuration: DPST-N.O.
- Operating Voltage: 24 V AC
- Timing Range: 0.1 seconds to 10 hours
- Design: Miniature, ultra slim
- Timing Modes: 4 modes
- Dimensions (H x L x W): 60mm x 60mm x 22mm
- Weight: 0.1 kg
Key Features
- Miniature and ultra slim design for space-saving installation
- 4-mode timing functionality
- Socket mounted for easy replacement
- DPST-N.O. contact configuration
- Operates at 24 V AC
- Timing range from 0.1 seconds to 10 hours
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing functions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Compact design reduces material usage and waste
- Long operational life reduces replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HNK42BA24 Miniature Ultra Slim Timing Relay is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial automation and control panel applications.
