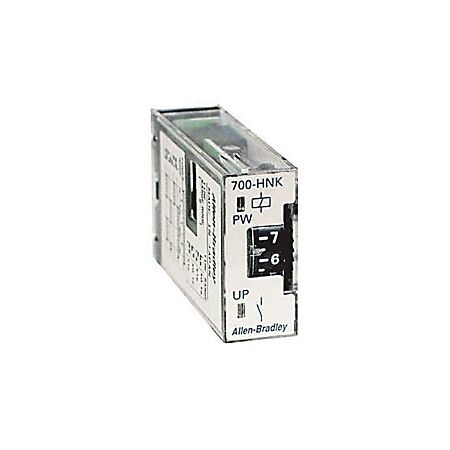

Miniature Ultra Slim Timing Relay | 4 Modes | Socket Mounted | 24V AC | by Allen-Bradley
The Miniature Ultra Slim Timing Relay is designed for efficient timing control in industrial automation systems. With its compact design and 4-mode functionality, it’s perfect for applications requiring precise timing, such as manufacturing processes and electrical control panels. Operating at 24V AC, this socket-mounted relay ensures easy replacement and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Timing Relay
- Design: Miniature, Ultra Slim
- Timing Modes: 4 modes
- Mounting: Socket mounted
- Contact Configuration: SPDT
- Operating Voltage: 24 V AC
- Timing Range: 0.1 seconds to 10 minutes
- Dimensions (H x L x W): 60mm x 60mm x 22mm
- Weight: 0.1 kg
Key Features
- Miniature and ultra slim design for space-saving installation
- 4-mode timing functionality
- Socket mounted for easy replacement
- Single Pole Double Throw (SPDT) contact configuration
- Operates at 24 V AC
- Timing range from 0.1 seconds to 10 minutes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing functions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage and waste
- Energy efficient operation minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HNK41AA24 Miniature Ultra Slim Timing Relay is available now for immediate purchase. Ideal for industrial automation and control panel applications.
