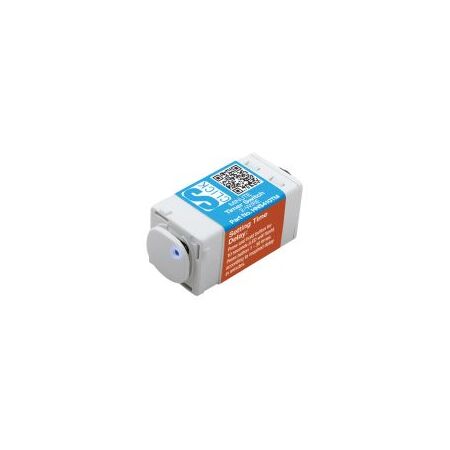

Minute Timer Switch Mech 2-Wire 240V 1.7A S-Click

BRAND: CABAC
SKU: HNS410TM
$150.80 List price: $201.00
+ −
30 Days Return Electricians Unlock Trade Access
S-Click minute timer mech features 2-wire 240V 1.7A rating and 1-59 minute auto-off delay with retained settings. Ideal for retrofitting to most lights.

Alternatively Known As: S-Click 2-Wire Minute Timer, HNS410TM Minute Timer Switch, S-Click Lighting Timer Mechanism

Technical Specifications
  • Model: HNS410TM
  • Wiring: 2-wire
  • Operating Voltage: 230–240V AC, 50Hz
  • Maximum Current: 1.7A
  • Maximum Load: 400VA
  • Minimum Load: 10VA
  • Timer Range: 1–60 minutes in 1-minute increments
  • Operating Temperature: 0°C to +50°C
  • Indicator: Blue LED status and timeout warning
  • Terminals: Screw terminals for 0.5–1.5mm² stranded conductors
  • Compliance: CISPR15, AS/NZS 3100 and AS/NZS 60669.2.1
  • Load Compatibility: Compatible lighting loads only; not suitable for fans, motors or iron-core ballasts
  • Dimensions (H x L x W): 40mm x 51mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Automatic light switch-off after a programmed time
  • Timer and no-timer operating modes
  • Retains the programmed setting after mains power loss
  • Configurable power-up ON or OFF function
  • Blue LED indicates operating status and provides a timeout warning
  • Compatible with HPM and Clipsal-style wall plates
  • Supports multi-way switching with suitable 240V normally open momentary switches
  • Suitable for retrofitting to most installed indoor lights
  • Quick tap allows the light to be switched off before timeout
Professional Installation Requirements
  • Must be installed as part of a fixed-wire electrical installation by a licensed electrical contractor or suitably qualified person. Install in accordance with the manufacturer's instructions and applicable Australian wiring requirements. Indoor use only.
Applications
  • Hallway lighting
  • Garage lighting
  • Laundry lighting
  • Wardrobe lighting
  • Short-duration domestic lighting circuits
  • Retrofitting to compatible HPM and Clipsal-style wall plates
Standards & Compliance
  • AS/NZS 3100
  • AS/NZS 60669.2.1
  • CISPR15
Environmental Benefits
  • Automatically switches lighting off after the programmed period, helping reduce unnecessary electricity consumption
  • Retained timer settings reduce the need for repeated reprogramming after power interruptions
  • Compact retrofit mechanism can extend the useful life of compatible wall-plate installations and reduce replacement waste
Warranty Information

12-month warranty against manufacturing and material defects from the date of invoice to the initial purchaser, subject to correct installation by a licensed electrical contractor and operation within the specified conditions.

Available Now

Available through S-Click and authorised Australian electrical distributors; confirm current distributor stock before ordering.
