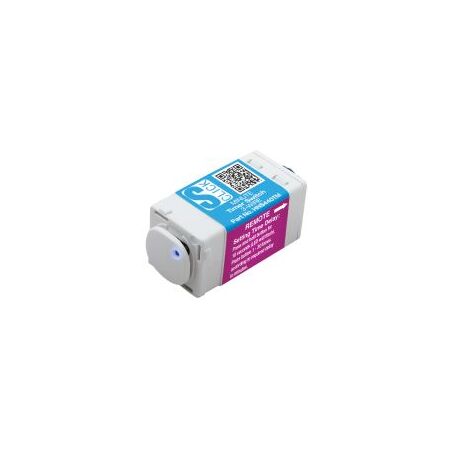

Minute Timer Switch Mech 3-Wire 240V 5A S-Click
S-Click minute timer mech features 3-wire 240V 5A rating and 1-59 minute auto-off delay. Ideal for fans, motors, pumps and contactor loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: S-Click Minute Mech Timer, 3-Wire Timer Switch, Programmable Auto-Off Switch, Cabac HNS440TM
Technical Specifications
- Model: HNS440TM
- Electrical Configuration: 3-wire
- Rated Voltage: 230–240V AC, 50Hz
- Maximum Current: 5A
- Maximum Load: 1200W resistive or 500VA inductive
- Time Delay: 1–60 minutes in 1-minute increments
- Load Compatibility: Fans, motors, pumps, contactors, transformers and ballast loads
- Indicator: Configurable blue LED with timeout warning
- Wall Plate Compatibility: HPM and Clipsal-style wall plates
- Terminals: Screw terminals suitable for 0.5–1.5mm² stranded conductors
- Material: Polycarbonate
- Colour: White
- Product Certification: CISPR15, AS/NZS 3100 and AS/NZS 60669.2.1
- Dimensions (H x L x W): 38mm x 70mm x 40mm
- Weight: 0.1 kg
Key Features
- 2-in-1 timer and untimed ON switch functionality
- Automatically switches the connected load off after the programmed period
- Programmable from 1 to 60 minutes in one-minute increments
- Retains the selected timer setting after loss of mains power
- Quick tap can switch the load off while operating
- Blue LED indicates operating status and provides a final 10-second timeout warning
- Suitable for fan motors, pumps, contactors, commercial lighting and other inductive loads
- Supports multi-way switching with the compatible S-Click HNS020RB remote button
- Compatible with HPM and Clipsal-style wall plates
Professional Installation Requirements
- Must be installed as part of a fixed-wire 230–240V electrical installation by a licensed electrician, in accordance with manufacturer instructions and applicable wiring rules. Confirm the connected load does not exceed the 5A/500VA inductive or 1200W resistive rating.
Applications
- Bathroom exhaust fans and heat lamps
- Ventilation fans and fan motors
- Spa air pumps and small pumps
- Contactors and control circuits
- Commercial lighting and compatible ballast loads
- Timed switching of household and light commercial appliances
Standards & Compliance
- AS/NZS 3100
- AS/NZS 60669.2.1
- CISPR15
Environmental Benefits
- Automatic switch-off can reduce energy consumption caused by fans, lights or pumps being left operating unnecessarily
- Programmable operation supports more efficient control of ventilation and auxiliary loads
- Retained settings after power loss helps maintain the intended energy-saving schedule
- Polycarbonate housing provides a durable service life, reducing replacement frequency and material waste
Warranty Information
12-month warranty against defects in materials and workmanship, subject to correct installation, use within specification and applicable Australian Consumer Law rights.
Available Now
Available through S-Click/Cabac and authorised Australian electrical distributors, subject to distributor stock levels.
