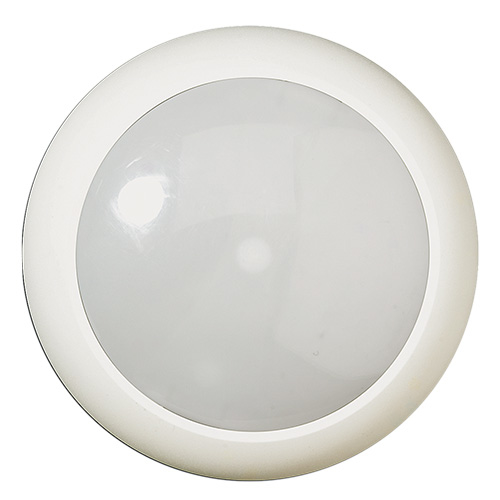

Mirror Optic PIR Ceiling Mount 360 Degree 18 Curtains Tecom
Tecom mirror optic PIR features ceiling mount, 360 degree coverage, 18 curtains, gliding focus and 4D processing. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aritech EV669, Interlogix AP669, 360° Ceiling Mount PIR, Mirror Optic Passive Infrared Detector
Technical Specifications
- Detection Technology: Dual optic passive infrared with two pyroelectric sensors
- Coverage: 360°
- Detection Curtains: 18 full curtains
- Coverage Diameter: 60 ft (18.3 m)
- Input Voltage: 12 V DC nominal
- Current Consumption: 9 mA nominal, 15 mA maximum at 12 V DC
- Alarm Output: Form C relay, 50 mA at 28 V DC
- Tamper Output: Closed-loop switch, 100 mA at 28 V DC
- Mounting Height: 2.4–4.9 m (8–16 ft)
- Alarm Time: 2.5 seconds minimum
- Operating Temperature: -10°C to 55°C
- Relative Humidity: 93% maximum, non-condensing
- Processing: 4D signal processing analysing signal size, shape, duration and speed
- Optics: Two independent 180° mirror segments
- Adjustment: Rotating base with 15° aiming adjustment in either direction
- Output Configuration: 180° shunt available for half-area coverage
- Listings: UL, ULC and C-UL-US listed according to manufacturer datasheet
- Dimensions (H x L x W): 68mm x 138mm x 138mm
- Weight: 0.12 kg
Key Features
- Ceiling-mounted 360° intrusion detection
- 18 solid mirror-optic detection curtains
- Dual 180° mirror segments and dual pyroelectric sensors
- 4D processing for improved discrimination and false-alarm resistance
- 60 ft (18.3 m) diameter coverage
- Selectable 180° shunt for partial-area protection
- Rotating base allows 15° adjustment in either direction
- Suitable for indoor alarm-system applications
Professional Installation Requirements
- Installation should be performed by a qualified security-alarm technician. Wire the detector to the alarm control panel using the manufacturer's installation instructions and commission the system in accordance with applicable Australian requirements, including AS/NZS 2201.1 where relevant.
Applications
- Indoor intrusion alarm systems
- Commercial premises security
- Industrial and warehouse security
- Retail and office security
- Rooms requiring wide-area ceiling-mounted detection
- Alarm systems requiring selectable full or half-area coverage
Standards & Compliance
- AS/NZS 2201.1:2007 is relevant to the design, installation, commissioning and maintenance of intruder alarm systems
- AS 2201.3:1991 is the relevant Australian standard category for internal intruder-alarm detection devices; the manufacturer's datasheet lists UL/ULC certifications rather than AS certification
Environmental Benefits
- Low nominal operating current of 9 mA helps minimise energy consumption during continuous alarm-system operation
- Long-life hardwired detector design can reduce replacement frequency and associated electronic waste
- Compact electronic construction reduces material use compared with larger multi-sensor detection units
Warranty Information
Tecom hardware is listed by Australian security distributors with a 5-year warranty from date of manufacture. Confirm the specific warranty terms and eligibility for the EV669 with the supplying distributor.
Available Now
Available through Tecom/Aritech security channels and authorised Australian security distributors, subject to product lifecycle and distributor stock.
