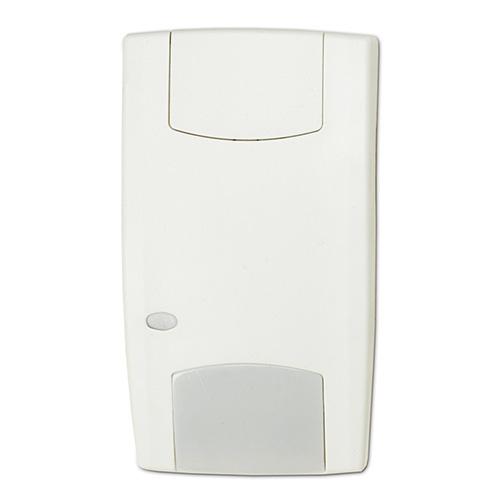

Mirror Optic PIR Sensor 12m 9 Curtain Anti-Masking Tecom
Tecom mirror optic PIR sensor features 12m range, 9 curtains and anti-masking. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VE1012AM PIR Motion Sensor, Tecom Mirror Optic PIR, 12 m Anti-Masking PIR Detector, 9-Curtain PIR Sensor
Technical Specifications
- Detection Technology: Passive infrared (PIR) with Vector Verified Enhanced signal processing
- Detection Range: Up to 12 m
- Optical Coverage: 9 high-density mirror curtains
- Field of View: 86°
- Anti-Masking: Optical anti-masking
- Power Supply: 9–15 VDC, 12 V nominal
- Current Consumption: 10 mA nominal; 24 mA maximum
- Mounting Height: 1.8–3.0 m
- Operating Temperature: -10°C to +50°C
- Relative Humidity: Up to 95% non-condensing
- Environment: Indoor use
- Enclosure Rating: IP30, IK02
- Alarm and Tamper Outputs: NC relay contacts, rated up to 80 mA at 30 VDC
- Certification: EN 50131 Grade 3
- Dimensions (H x L x W): 108mm x 46mm x 60mm
- Weight: 0.128 kg
Key Features
- 12 m detection range for indoor alarm applications
- Nine mirror-optic detection curtains
- Optical anti-masking protection
- Undercrawl protection and alarm memory
- Built-in pry-off tamper protection
- 86° field of view
- Suitable for wall mounting at 1.8–3.0 m
- Wired low-voltage operation
Professional Installation Requirements
- Installation, wiring and commissioning should be completed by a suitably qualified security installer in accordance with the alarm-system manufacturer's instructions and AS/NZS 2201.1:2007. The sensor operates from a 9–15 VDC low-voltage supply.
Applications
- Indoor intrusion alarm systems
- Residential security installations
- Commercial premises and offices
- Retail, warehouse and light industrial security
- Perimeter rooms, corridors and entry areas requiring anti-masking detection
Standards & Compliance
- Relevant installation standard: AS/NZS 2201.1:2007 for intruder alarm systems installed at clients' premises
Environmental Benefits
- Low nominal current consumption helps minimise standby power demand in wired alarm systems
- Durable electronic construction can support longer service life and reduce replacement waste
- Small enclosure minimises material use and transport volume compared with larger detection devices
Warranty Information
Tecom Challenger hardware is listed with a 5-year warranty; confirm the applicable terms, exclusions and warranty start date with the supplying distributor. ([teracomsolutions.com.au](https://www.teracomsolutions.com.au/warranty?utm_source=openai))
Available Now
Available through Tecom security system suppliers and authorised Australian security distributors.
