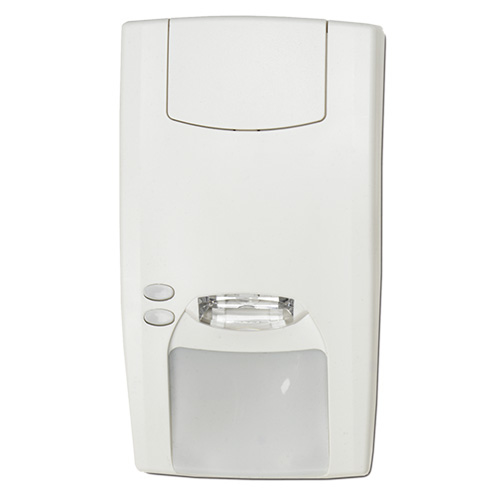

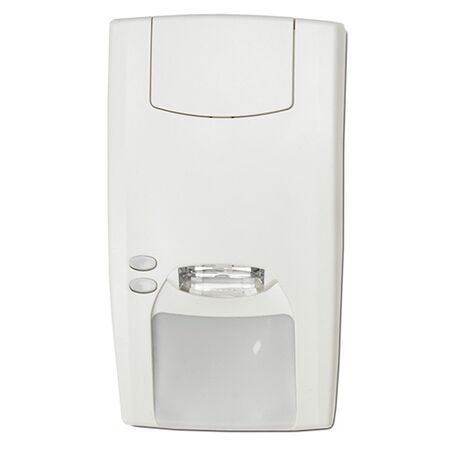

Mirror Optic PIR Sensor 12m Anti-Mask Hardwired Tecom
Tecom mirror optic PIR sensor features 12m range and anti-mask technology with hardwired connection. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aritech EV1012AM, 12 m Volumetric PIR, Anti-Masking PIR Motion Detector, Mirror Optic Intrusion Sensor
Technical Specifications
- Sensor Type: Passive infrared motion sensor with anti-masking
- Detection Range: 12 m
- Coverage: 86° field of view with 9 continuous curtains
- Optical Technology: 3Brid step and gliding focus mirror optics
- Signal Processing: 5D digital signal processing
- Anti-Masking: Active infrared anti-masking with dedicated AM relay
- Power Supply: 9–15 VDC, 12 VDC nominal
- Current Consumption: 10 mA nominal; 24 mA maximum
- Alarm Relay: Voltage-free, normally closed when energised
- Tamper Relay: Voltage-free, normally closed when cover is closed
- Mounting Height: 1.8–3.0 m
- Operating Temperature: -10°C to +55°C
- Relative Humidity: Up to 95%, non-condensing
- Ingress and Impact Rating: IP30 / IK02
- Security Classification: EN 50131-2-2 Grade 3
- Dimensions (H x L x W): 60mm x 108mm x 46mm
- Weight: 0.128 kg
Key Features
- 12 m volumetric detection range
- Mirror optic design with 9 high-density detection curtains
- Active anti-masking technology to detect obstruction and tampering
- Dynamic pyro and circuit diagnostics
- Full under-crawl detection
- Constant range sensitivity with auto-focus optics
- Selectable coverage pattern using mirror masks
- Integrated pry-off tamper protection
- Hardwired connection for compatible alarm control panels
- Plug-in electronics simplify installation and servicing
Professional Installation Requirements
- Installation should be completed by a suitably qualified security technician. Connect to a compatible 9–15 VDC hardwired alarm panel and configure the alarm, tamper and anti-masking circuits in accordance with the system design and applicable Australian requirements.
Applications
- Indoor intruder alarm systems
- Residential security systems
- Commercial premises and offices
- Retail and hospitality security
- Warehouses and light industrial facilities
- High-security areas requiring anti-masking detection
Standards & Compliance
- Relevant Australian standard: AS 2201.3:1991 for intruder alarm detection devices for internal use; product-specific Australian certification is not stated
- Manufacturer datasheet lists EN 50131-2-2 Grade 3 classification
Environmental Benefits
- Low-voltage operation with approximately 10 mA nominal current consumption
- Sealed optics and durable construction can extend service life and reduce replacement waste
- 5D signal processing and diagnostics may reduce false alarms and unnecessary service visits
Warranty Information
Tecom hardware: 5-year warranty, subject to the manufacturer’s current warranty terms and conditions.
Available Now
Available through Tecom, Aritech and authorised Australian security-system distributors, subject to distributor stock.
