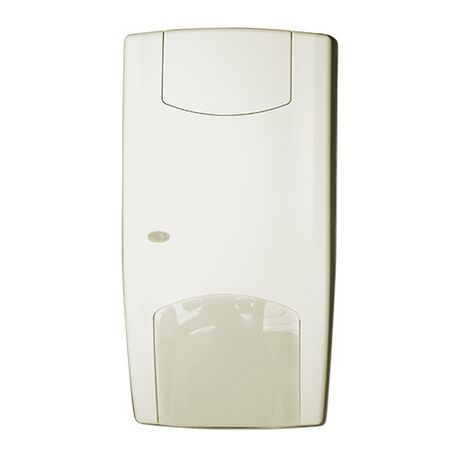

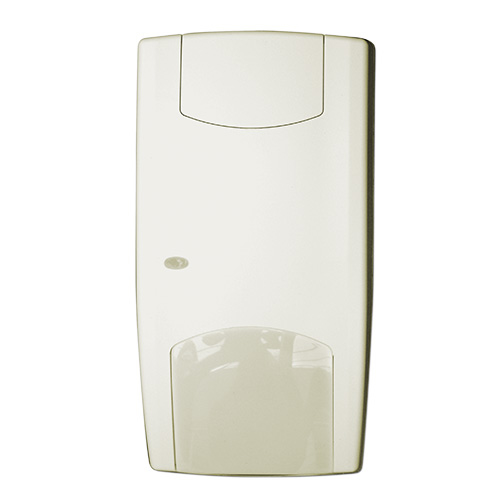

Mirror Optic PIR Sensor 16m 11 Curtain Anti-Masking Tecom
Tecom mirror optic PIR sensor features 16m range, 11 curtains and anti-masking. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aritech EV1116AM, Tecom 16m PIR Detector, Mirror Optic PIR Sensor, Anti-Masking PIR Motion Detector
Technical Specifications
- Detection Range: 16 m
- Detection Curtains: 11 continuous curtains
- Technology: Passive infrared with 3Brid step and gliding focus mirror optics
- Anti-Masking: Active infrared optical anti-masking
- Signal Processing: 5D digital signal processing
- Coverage Field of View: 86°
- Power Supply: 9–15 VDC
- Nominal Current Consumption: 11 mA
- Alarm Relay: Voltage-free, normally closed when energised
- Tamper Relay: Voltage-free, normally closed when cover is closed
- Mounting Height: 1.8–3.0 m
- Operating Temperature: -10°C to +55°C
- Relative Humidity: Up to 95%
- Installation Environment: Indoor
- Certification: EN 50131-2-2 Grade 3
- Dimensions (H x L x W): 125mm x 60mm x 65mm
- Weight: 0.15 kg
Key Features
- 16 m volumetric PIR detection range
- 11 continuous mirror-optic detection curtains
- Active infrared anti-masking helps identify sensor obstruction
- 3Brid orthogonal curtain design for continuous coverage
- 5D processing helps distinguish intruders from slow-moving environmental signals
- Full under-crawl detection
- Selectable coverage pattern using mirror masks
- Automatic focus with constant range sensitivity
- Plug-in electronics and sealed optics
- On-board pry-off tamper protection
- No range adjustment required for different mounting heights
Professional Installation Requirements
- Installation and commissioning should be performed by a qualified security technician. Connect to a compatible alarm control panel using the specified 9–15 VDC supply and configure the anti-masking, alarm and tamper outputs in accordance with the system design and applicable Australian requirements.
Applications
- Indoor residential intrusion alarm systems
- Commercial and office security systems
- Retail and hospitality premises
- Perimeter protection within enclosed buildings
- Tecom Challenger and compatible hard-wired alarm installations
Standards & Compliance
- AS 2201.3:1991 — relevant Australian Standard for intruder alarm detection devices intended for internal use
Environmental Benefits
- Low nominal current consumption of 11 mA helps limit standby power demand in hard-wired alarm systems
- Durable electronic construction can reduce replacement frequency and associated waste
- Sealed optics help protect the sensing assembly from internal contamination and support service life
Warranty Information
Tecom hardware is covered by a 5-year manufacturer warranty, subject to the applicable terms and conditions.
Available Now
Available through Tecom, Aritech and authorised Australian security-system distributors.
