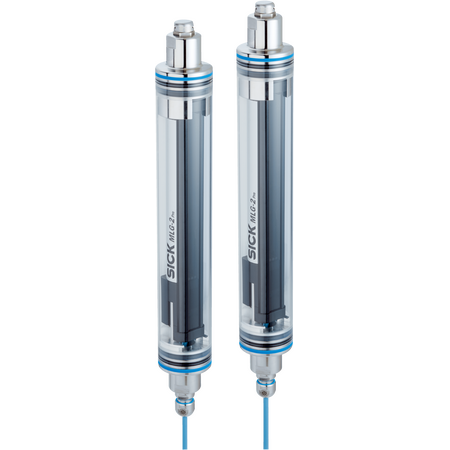

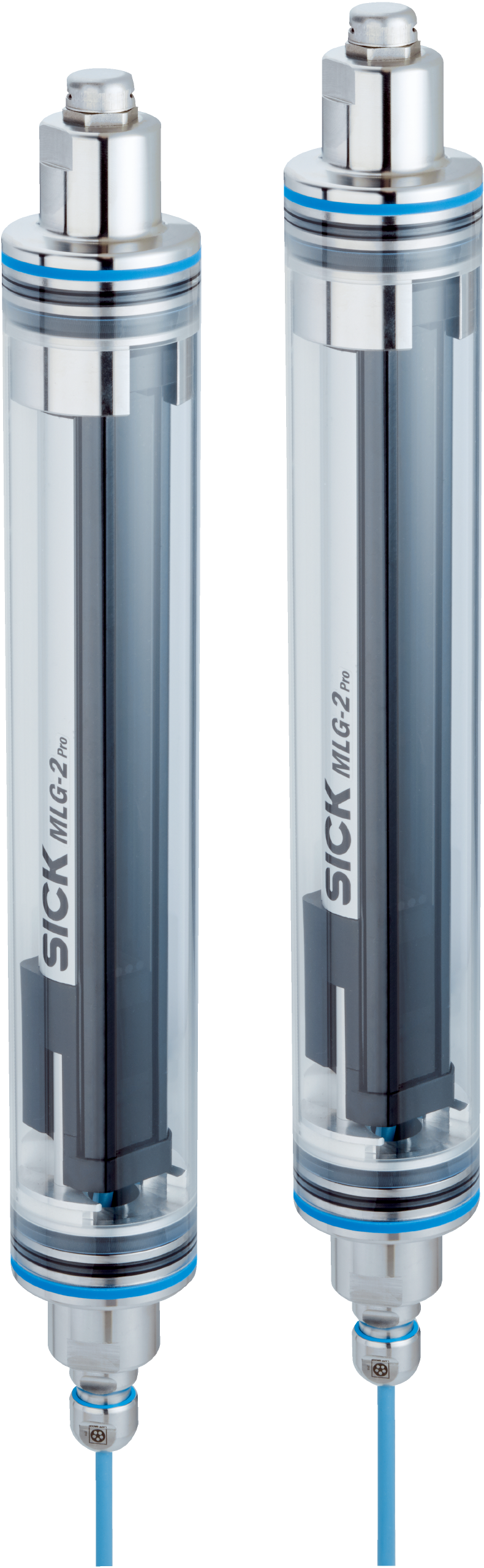

MLG02A-0745R53201 | Automation light grids
The SICK MLG02A-0745R53201 Automation Light Grid offers high-precision object detection and measurement with extended functionality, suitable for demanding industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG02A-0745R53201 | Automation light grids
Brand: SICK
SKU: 1138387
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Industrial Light Grid Sensor, Object Detection Light Grid
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 2.5 mm
- Number of beams: 299
- Detection height: 745 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 70.9 mA
- Power consumption receiver: 180.6 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 8-pin male connectors
- Housing material: Aluminum, PMMA Plexiglas XT, polypropylene, stainless steel
- Enclosure rating: IP69K
- Response time: 3.8 ms
- Maximum range: 2.1 m
- Operating range: 1.5 m
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -20°C to +55°C
- Ambient storage temperature: -40°C to +70°C
- EMC standard: EN 60947-5-2
- IO-Link V1.1 with 230.4 kbit/s data transmission rate
- Dimensions (H x L x W): 745mm x 100mm x 50mm
- Weight: 2.06 kg
Key Features
- Pro - Extended functionality device version
- 299 beams with 2.5 mm beam separation
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- IP69K rated housing for harsh environments
- Push-pull PNP/NPN switching output
- IO-Link V1.1 communication with 230.4 kbit/s data rate
- Robust aluminum and stainless steel housing materials
- Short initialization time under 1 second
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for automation processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K rated housing minimizes waste through extended product life
- Supports automation processes that can optimize resource use and reduce material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG02A-0745R53201 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
