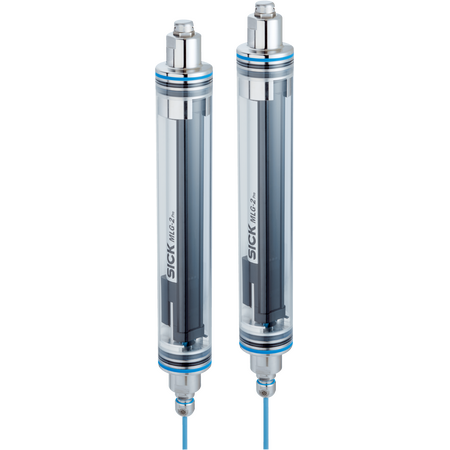

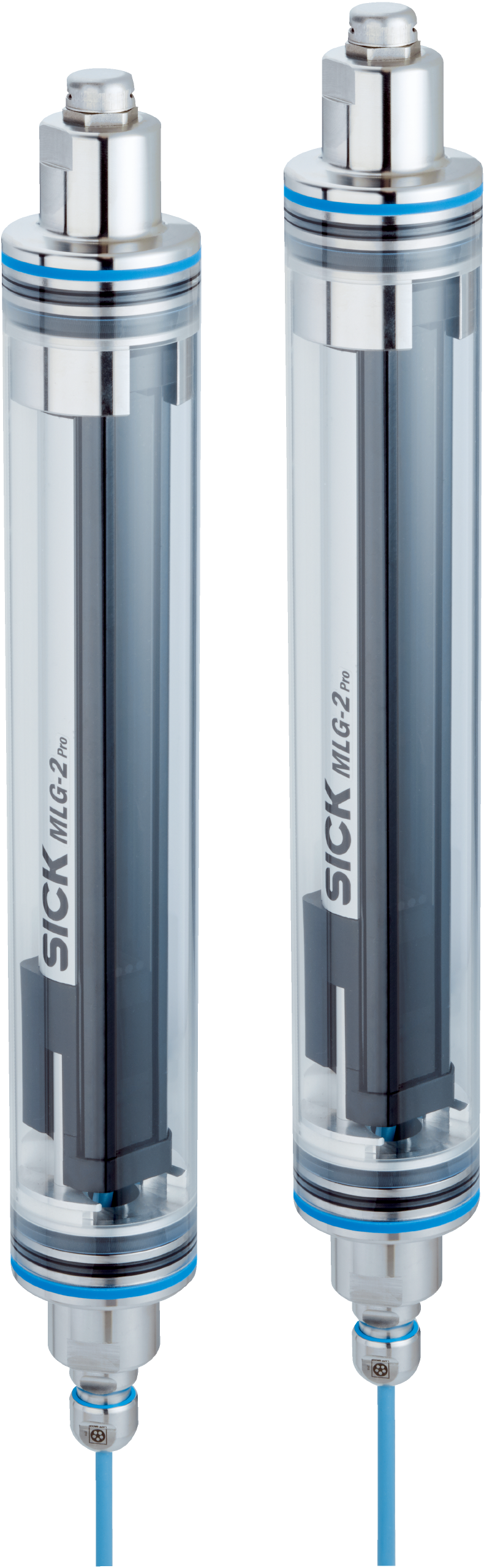

MLG05A-1345B50501 | Automation light grids
The SICK MLG05A-1345B50501 Automation Light Grid offers high-precision object detection and measurement with extended functionality, suitable for demanding industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05A-1345B50501 | Automation light grids
Brand: SICK
SKU: 1139290
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light barrier, Object detection light grid, SICK light grid sensor
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 5 mm
- Beam separation: 5 mm
- Number of beams: 270
- Detection height: 1345 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 69.45 mA
- Power consumption receiver: 174.8 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 8-pin connectors
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Enclosure rating: IP69K
- Response time: 3.8 ms
- Maximum range: 5.25 m
- IO-Link V1.1 with 230.4 kbit/s data rate
- Analog outputs: 4 mA to 20 mA current output
- Digital outputs: 2 x Q outputs
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Operating temperature: -20 °C to +55 °C
- Dimensions (H x L x W): 1345mm x 50mm x 50mm
- Weight: 3.26 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 270 beams
- Minimum detectable object size as small as 5 mm
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP69K rated protective housing for harsh environments
- Fast response time of 3.8 ms
- IO-Link V1.1 communication with 230.4 kbit/s data rate
- Analog and digital outputs for versatile interfacing
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation sensors and electrical safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for automation processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K rated housing minimizes waste through extended product life
- High measurement accuracy reduces material waste in manufacturing processes
Warranty Information
Warranty details available upon request from SICK, typically including manufacturer defects coverage.
Available Now
The SICK MLG05A-1345B50501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
