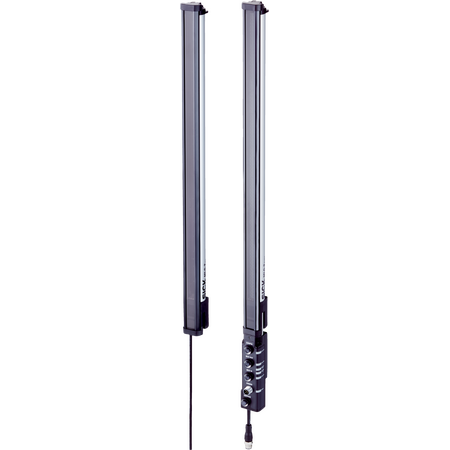

MLG05N-0895N11401 | Automation light grids

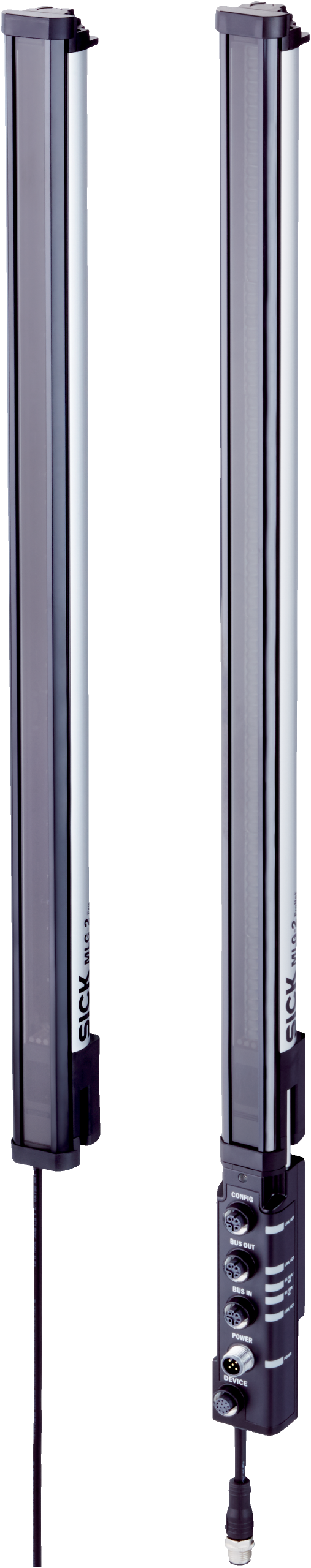

The SICK MLG05N-0895N11401 Automation Light Grid features ProNet extended functionality with fieldbus, 180 beams for precise object detection, and robust IP65/IP67 rated aluminum housing for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05N-0895N11401 | Automation light grids
Brand: SICK
SKU: 1145505
Alternatively Known As: Automation Light Grid, Safety Light Curtain, ProNet Light Grid, Industrial Light Grid Sensor
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 5 mm
- Number of beams: 180
- Beam separation: 5 mm
- Detection height: 895 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 64 mA
- Power consumption receiver: 156 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 20 m
- Operating range: 14.5 m
- Response time: 15.2 ms
- Shock resistance: Continuous shocks 10 g, single shocks 15 g
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Interfaces: PROFINET, 1 digital output
- Dimensions (H x L x W): 100mm x 100mm x 1000mm
- Weight: 2.05 kg
Key Features
- ProNet extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size down to 5 mm
- 180 beams with 5 mm beam separation
- Cable synchronization
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Enclosure rating IP65 and IP67
- Push-pull PNP/NPN switching output
- Aluminum housing with PMMA front screen
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Ambient operating temperature from -30°C to +55°C
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup, safety, and compliance with electrical and automation standards.
Applications
- Object detection and object width measurement
- Object recognition
- Height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object position and hole position detection
- Zone definition
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High measurement accuracy minimizes errors and material waste in automation processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05N-0895N11401 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
