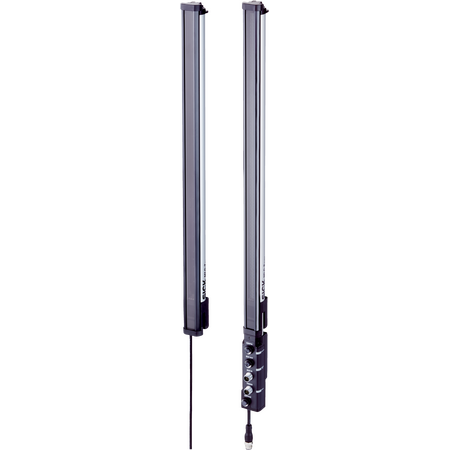

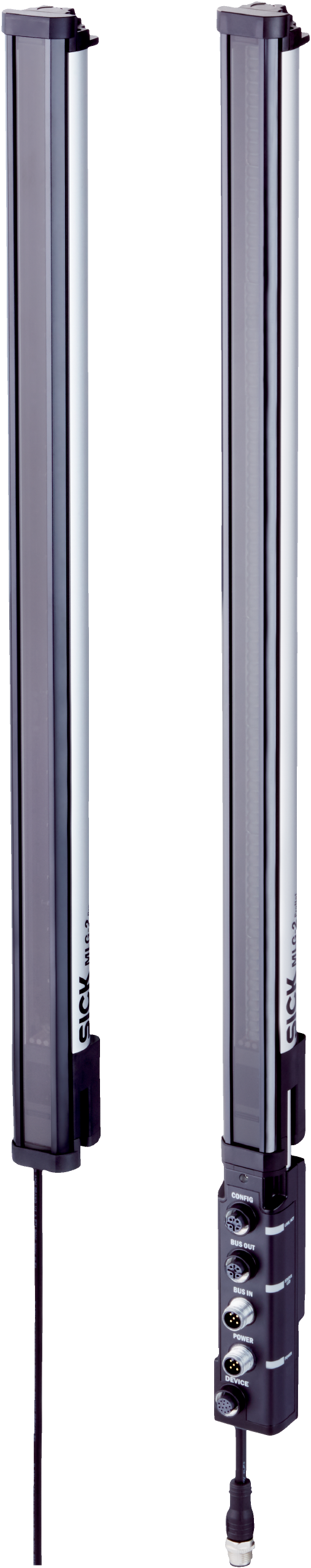

Product Name/Title: MLG05N-1795C10801 | Automation light grids
Brand: SICK
SKU: 1114925
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Industrial Light Grid Sensor, ProNet Light Grid
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 3 mm to 9 mm depending on configuration
- Beam separation: 5 mm
- Number of beams: 360
- Detection height: 1795 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions: Cross beam, Beam blanking, High-speed scan, High measurement accuracy
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 73 mA
- Power consumption receiver: 192 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum with PMMA front screen
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 12 m
- Operating range: 8.5 m
- Response time: 29 ms
- Interfaces: CANopen with data rate 10 kbit/s to 1 Mbit/s
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 1795mm x 50mm x 50mm
- Weight: 3.8 kg
Key Features
- ProNet extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size as small as 3 mm
- 360 beams with 5 mm beam separation
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Supply voltage DC 19.2 V to 28.8 V
- Push-pull PNP/NPN switching output
- Housing made of aluminum with PMMA front screen
- Enclosure rating IP65 and IP67
- Circuit protection including reverse polarity and short-circuit protection
- CANopen interface with data transmission rate 10 kbit/s to 1 Mbit/s
- Shock resistance up to 15 g and vibration resistance 5 g
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial automation safety standards and electrical connections to ensure proper setup and compliance.
Applications
- Switching output
- Object detection/object width
- Object recognition
- Height classification
- Hole detection/hole size
- Outside/inside dimension
- Object position
- Hole position
- Zone definition
- Object height measurement
- Measurement of the outside dimension
- Measurement of the inside dimension
- Measurement of the object position
- Measurement of the hole position
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MLG05N-1795C10801 Automation Light Grid is available for immediate purchase, ideal for industrial automation, safety monitoring, and precise object detection applications.
