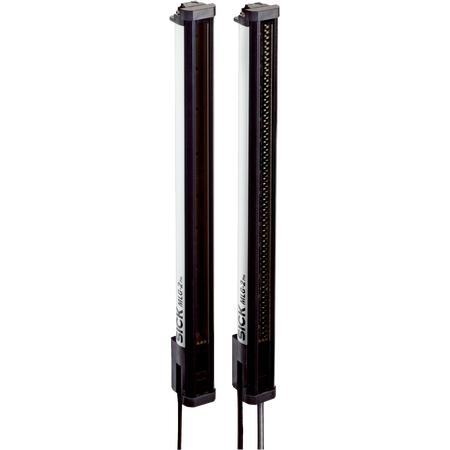

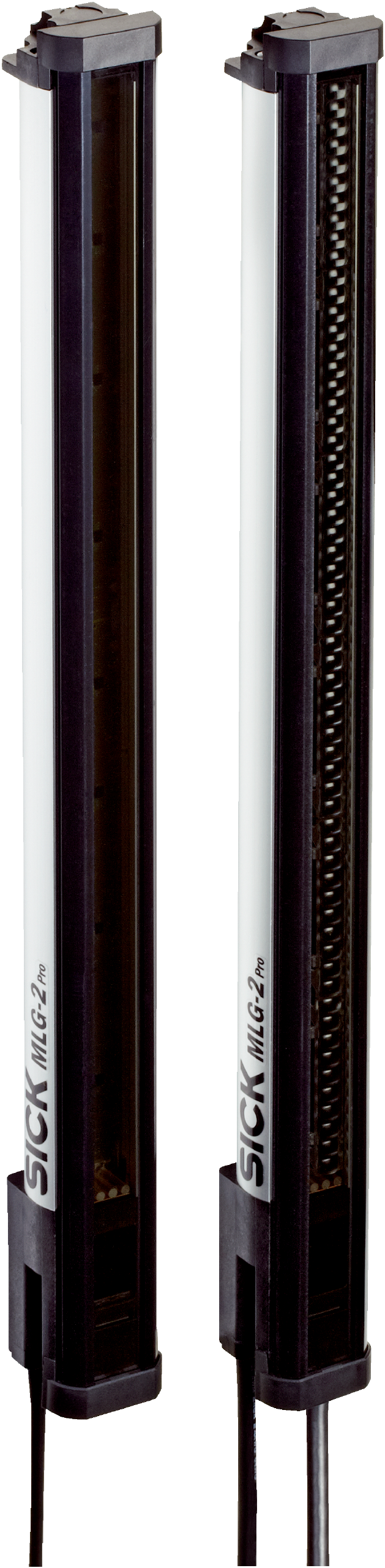

MLG05W-0100I12501 | Automation light grids
The SICK MLG05W-0100I12501 is an automation light grid sensor designed for precise web guiding applications, featuring high resolution, robust construction, and versatile communication interfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05W-0100I12501 | Automation light grids
Brand: SICK
SKU: 1153602
Alternatively Known As: Automation light grid sensor, web guiding light grid, SICK light curtain, industrial light grid sensor
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Number of beams: 30
- Total measuring field width: 145 mm
- Light source: LED, Infrared light
- Wave length: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 56.5 mA
- Power consumption receiver: 126 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 (5-pin, 8-pin, 4-pin options)
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 7.1 ms
- Interfaces: IO-Link V1.1, RS-485
- Data transmission rate: up to 921.6 kbit/s
- Maximum cable length: 20 m
- Cycle time IO-Link: 3 ms
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient light immunity: 100,000 lx
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 229mm x 31mm x 34mm
- Weight: 0.56 kg
Key Features
- Web guiding device version with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 30 beams with total measuring field width of 145 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection ratings
- Push-pull PNP/NPN switching output
- Interfaces include IO-Link V1.1 and RS-485 for flexible communication
- Operating temperature range from -30 °C to +55 °C
- Shock and vibration resistant for industrial environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Web guiding in industrial automation
- Object detection and measurement in manufacturing lines
- Precision monitoring of moving materials
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China RoHS for reduced hazardous substances
