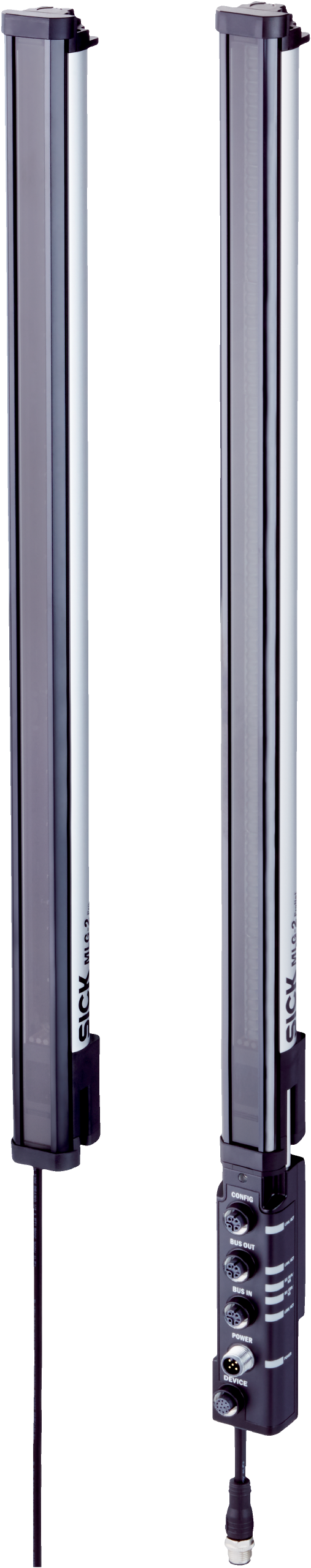

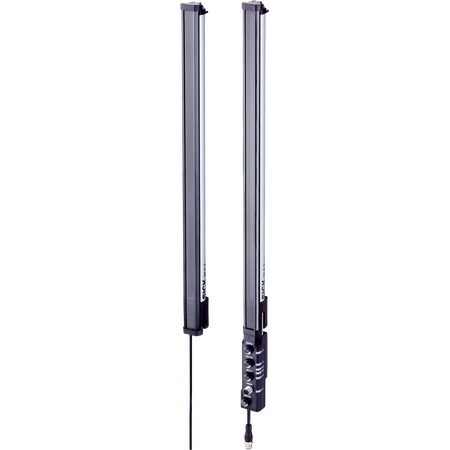

Product Name/Title: MLG05W-0300N12503 | Automation light grids
Brand: SICK
SKU: 1129340
Alternatively Known As: Automation light grid sensor, web guiding light grid, SICK light curtain, industrial light grid sensor
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 90
- Total measuring field width: 445 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 59.5 mA
- Power consumption receiver: 138 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 19 ms
- Shock resistance: Continuous shocks 10 g, 16 ms; Single shocks 15 g, 11 ms
- Vibration resistance: Sinusoidal oscillation 10-150 Hz 5 g
- Ambient light immunity: 100,000 lx
- Operating temperature: –30 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 529mm x 31mm x 34mm
- Weight: 1.16 kg
Key Features
- Web guiding device version with sender/receiver sensor principle
- 90 beams with 5 mm beam separation and 0.1 mm resolution
- Cycle time of 32 µs per beam for fast response
- Repeatability of 6 µm and accuracy of ±0.3 mm
- LED infrared light source with 850 nm wavelength
- IP65 and IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output
- Cable synchronization type
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and integration with automation systems.
Applications
- Web guiding in industrial automation
- High resolution object detection and measurement
- Automation processes requiring precise object length and position detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED infrared light source
- Durable aluminum housing reduces material waste and extends product life
- High accuracy and repeatability reduce waste in manufacturing processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MLG05W-0300N12503 Automation Light Grid is available for immediate purchase, ideal for high precision industrial automation and web guiding applications.
