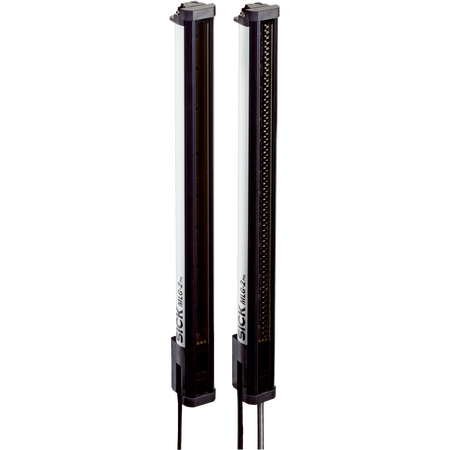

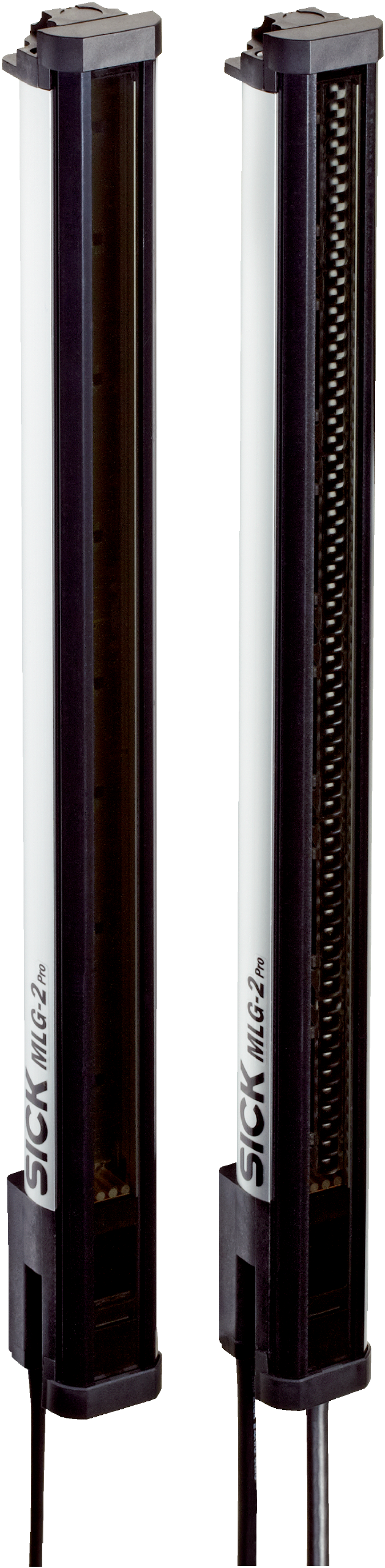

MLG05W-0333R12503 | Automation light grids
The SICK MLG05W-0333R12503 Automation Light Grid is a high precision web guiding sensor system designed for industrial automation applications, featuring 180 beams, high resolution, and robust IP65/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05W-0333R12503 | Automation light grids
Brand: SICK
SKU: 1130877
Alternatively Known As: Automation light grid, web guiding sensor, industrial light curtain, SICK light grid sensor
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Number of beams: 180
- Total measuring field width: 1,345 mm
- Measuring field width (connection side): 445 mm
- Blind zone (medium range): 455 mm
- Measuring field width (head side): 445 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 64 mA
- Power consumption receiver: 156 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 (5-pin, 8-pin), M12 female connector (4-pin, D-coded)
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 36.7 ms
- IO-Link V1.1 support with 230.4 kbit/s data rate
- Maximum cable length: 20 m
- Cycle time IO-Link: 3 ms
- Inputs/outputs: 4 x Q (IO-Link), 3 digital inputs, 3 digital outputs
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- Ambient light immunity: 100,000 lx
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 1430mm x 31mm x 34mm
- Weight: 3 kg
Key Features
- Web guiding device version
- Sender/receiver sensor principle
- Minimum object length detection of 4 mm
- 180 beams with 5 mm beam separation
- High resolution mode with 0.1 mm resolution
- Cycle time of 32 µs per beam
- Repeatability of 6 µm and accuracy of ± 0.3 mm
- LED infrared light source with 850 nm wavelength
- IP65 and IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output
- Cable synchronization type
- Includes sender, receiver, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper setup and calibration.
Applications
- Web guiding in industrial automation
- High precision object detection and measurement
- Quality control in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product life and reduces waste
- Robust IP65/IP67 protection minimizes maintenance and replacement frequency
