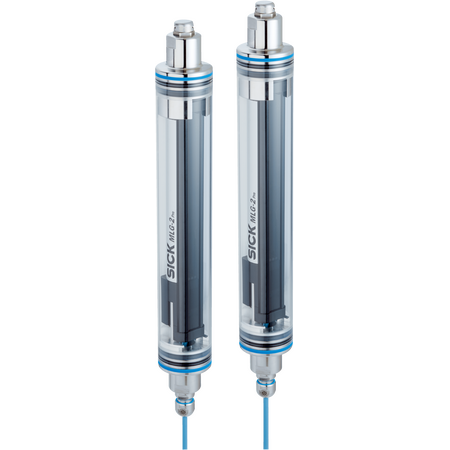

MLG10A-0890I50801 | Automation light grids

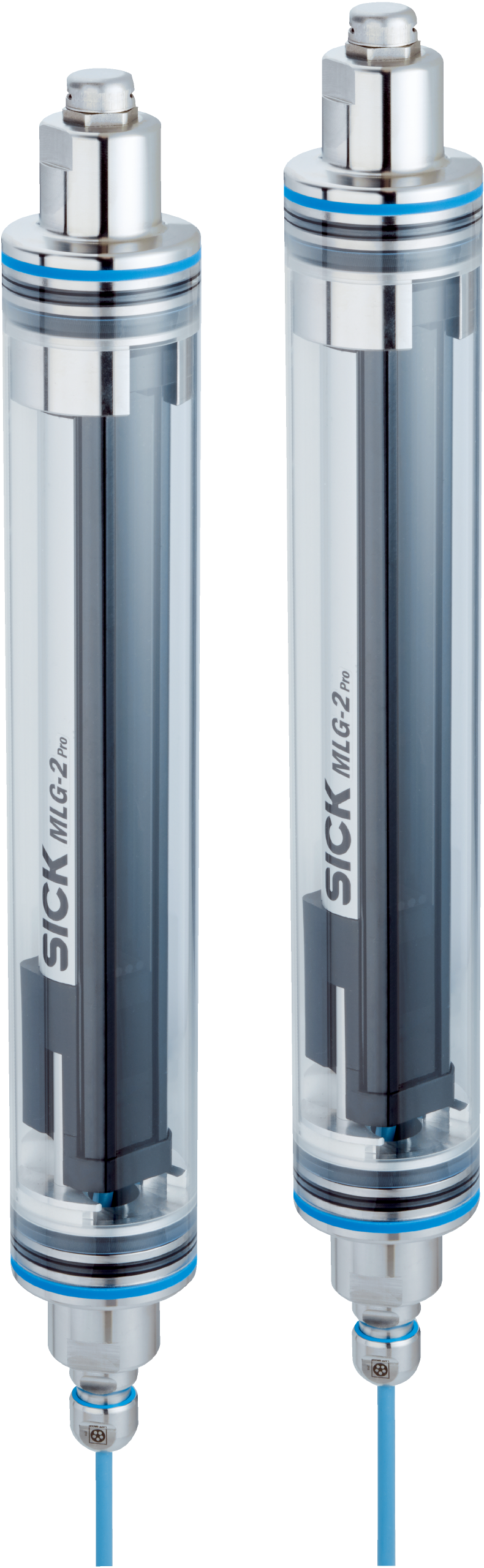

The SICK MLG10A-0890I50801 Automation Light Grid offers advanced object detection and measurement capabilities with extended functionality, robust IP69K protection, and versatile interface options for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG10A-0890I50801 | Automation light grids
Brand: SICK
SKU: 1138503
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Industrial Light Grid Sensor
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 10 mm
- Beam separation: 10 mm
- Number of beams: 90
- Detection height: 890 mm
- Operating voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 60.45 mA
- Power consumption receiver: 138.8 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: M12 plug connectors (5-pin sender, 8-pin receiver)
- Housing material: Aluminum, PMMA Plexiglas XT, polypropylene, stainless steel
- Enclosure rating: IP69K
- Response time: 3.6 ms
- Maximum range: 8.8 m
- Operating range: 6.3 m
- Interfaces: IO-Link V1.1, RS-485
- Data transmission rate: up to 921.6 kbit/s
- Ambient operating temperature: -20 °C to +55 °C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Dimensions (H x L x W): 890mm x 100mm x 50mm
- Weight: 2.36 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 90 beams
- Minimum detectable object size of 10 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP69K rated enclosure for harsh environments
- Reverse polarity and short-circuit protected outputs
- IO-Link V1.1 and RS-485 interfaces for data communication
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Measurement of outside and inside dimensions
- Object and hole position measurement
- Zone definition and switching output applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K housing minimizes environmental impact by extending product lifespan
- High measurement accuracy reduces waste and improves process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MLG10A-0890I50801 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection and measurement.
