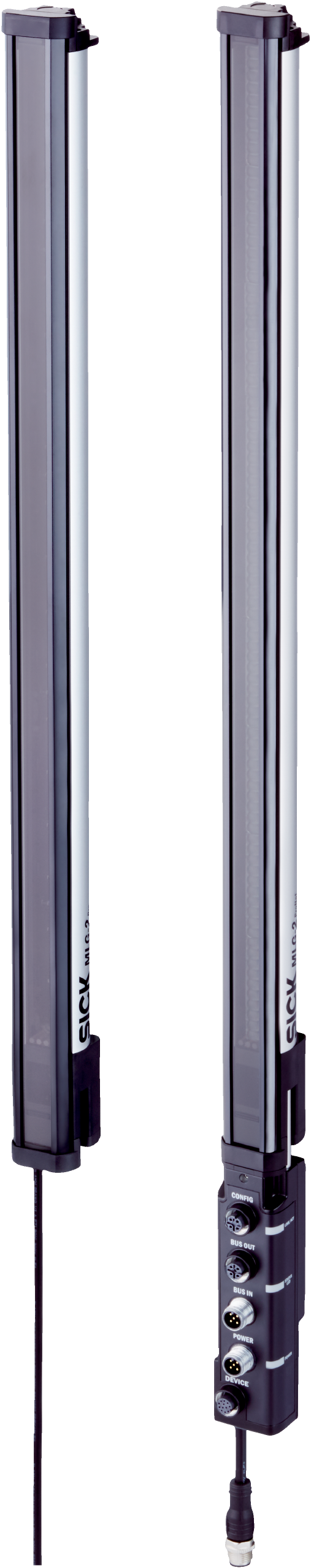

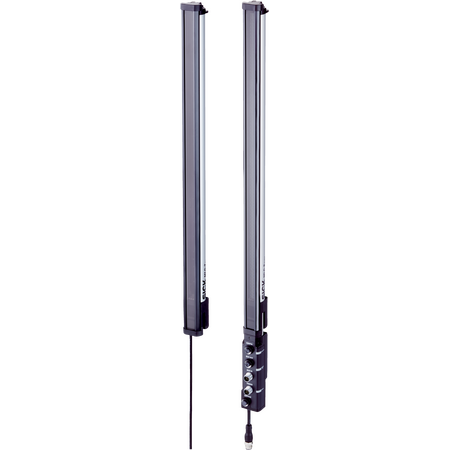

Product Name/Title: MLG10N-0290P10502 | Automation light grids
Brand: SICK
SKU: 1222052
Alternatively Known As: Automation light grid, Safety light curtain, Object detection light grid, Infrared light grid sensor
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 10 mm to 14 mm
- Beam separation: 10 mm
- Number of beams: 30
- Detection height: 290 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions: Cross beam, Beam blanking, High measurement accuracy
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 56.5 mA
- Power consumption receiver: 126 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 7 m
- Operating range: 5 m
- Response time: 3.6 ms
- Data interface: PROFIBUS DP DPV0 with autobaud 9,600 kbit/s to 12 Mbit/s
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 50mm x 100mm x 300mm
- Weight: 0.85 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle with 30 beams and 10 mm beam separation
- Minimum detectable object size of 10 mm to 14 mm
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Supply voltage DC 19.2 V to 28.8 V
- Push-pull PNP/NPN switching output
- Housing made of aluminum with PMMA front screen
- Enclosure rating IP65 and IP67
- Short initialization time under 1 second
- Fieldbus module with PROFIBUS DPV0 support
- Robust against shocks and vibrations
- Ambient operating temperature from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial automation and electrical safety standards to ensure proper setup and compliance.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Measurement of outside and inside dimensions
- Object and hole position measurement
- Zone definition for automation processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High measurement accuracy minimizes errors and material waste in automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG10N-0290P10502 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
