MLG10S-0440D10508 | Automation light grids

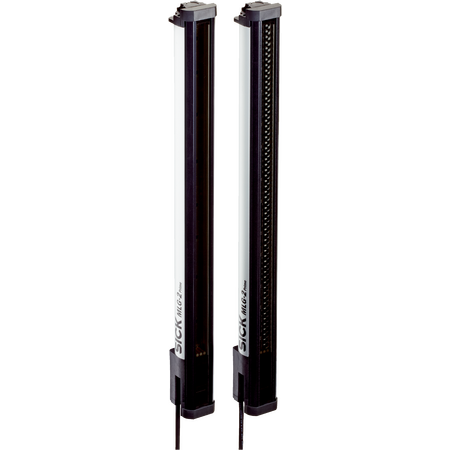

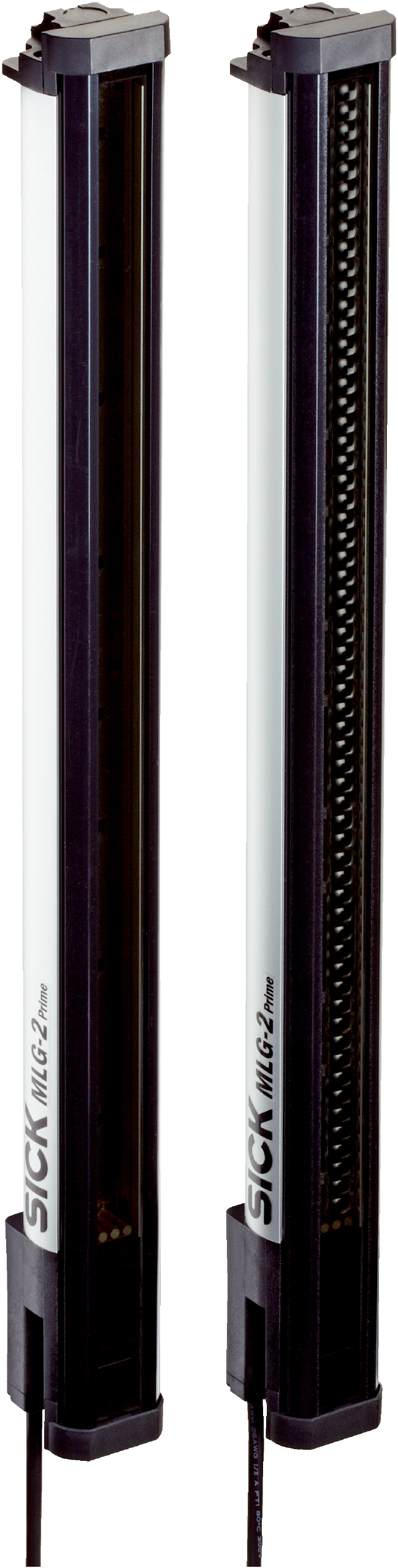

The SICK MLG10S-0440D10508 Automation Light Grid is a high-performance sensor system designed for precise object detection, recognition, and height classification in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG10S-0440D10508 | Automation light grids
Brand: SICK
SKU: 1217978
Alternatively Known As: Automation light grid, Safety light curtain, Object detection sensor, Height classification sensor, SICK light grid
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 14 mm
- Number of beams: 45
- Beam separation: 10 mm
- Detection height: 440 mm
- Light source: LED, Infrared light at 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 57.25 mA
- Power consumption receiver: 129 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Enclosure rating: IP65, IP67
- Protection class: III
- Response time: 6.7 ms
- Operating range: 5 m
- Maximum range: 7 m
- Minimum range: ≥ 0.2 m
- IO-Link V1.1 interface with 38.4 kbit/s data rate
- Cycle time: 6 ms
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 440mm x 50mm x 50mm
- Weight: 1.15 kg
Key Features
- Prime device version with standard functionality
- Sender/receiver sensor principle
- Minimum detectable object size of 14 mm
- 45 beams with 10 mm beam separation
- Optical synchronization
- Presence detection and automatic object recognition
- Auto-define height classification
- Cross beam and beam blanking functions
- LED infrared light source at 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- Aluminum housing with PMMA front screen
- Short initialization time under 1 second
- IO-Link V1.1 interface with 38.4 kbit/s data rate
- Robust against shocks and vibrations
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Object detection
- Object recognition
- Height classification
- Object height measurement
- Switching output
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Robust design minimizes maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG10S-0440D10508 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
