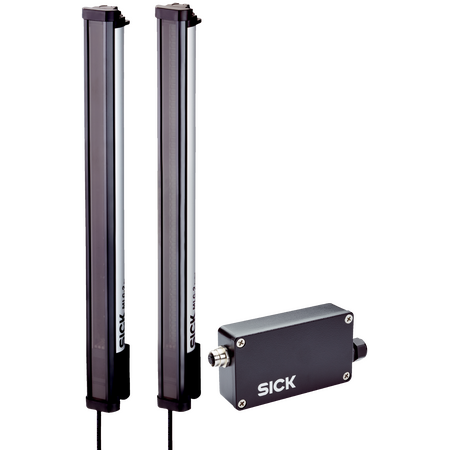

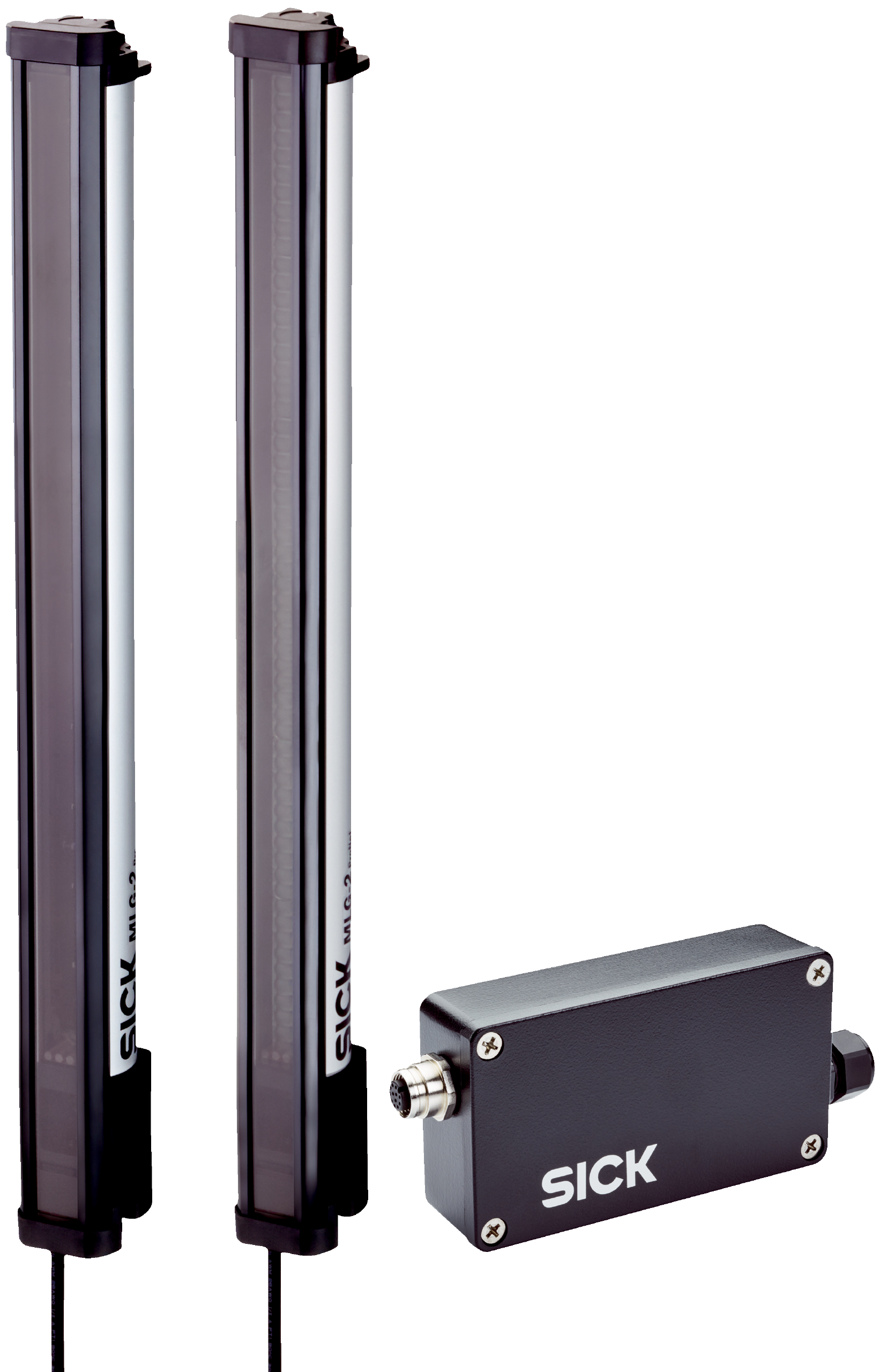

MLG20N-0440U10501 | Automation light grids
The SICK MLG20N-0440U10501 Automation Light Grid offers precise object detection, height classification, and hole detection with robust dust- and sunlight-resistant design, suitable for industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG20N-0440U10501 | Automation light grids
Brand: SICK
SKU: 1222405
Alternatively Known As: Automation light grid, safety light curtain, optical safety sensor, light barrier sensor, object detection light grid
Technical Specifications
- Device version: ProNet - Replacement product for MLG-1 with terminals
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Beam separation: 20 mm
- Number of beams: 23
- Detection height: 440 mm
- Type of synchronization: Cable
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 56.15 mA
- Power consumption receiver: 124.6 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 7 m
- Operating range: 5 m
- Response time: 3.6 ms
- Interface: RS-485 with baud rate 9.6 kbit/s
- Data transmission rate: 1.2 kbit/s to 921.6 kbit/s
- Inputs/outputs: RS-485 plus 6 digital outputs and 2 digital inputs
- Shock resistance: Continuous shocks 10 g, 16 ms; single shocks 15 g, 11 ms
- Vibration resistance: Sinusoidal oscillation 10-150 Hz, 5 g
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 440mm x 100mm x 50mm
- Weight: 1.15 kg
Key Features
- ProNet device version, replacement for MLG-1 with terminals
- Sender/receiver sensor principle with 23 beams
- Minimum detectable object size of 20 mm
- Beam separation of 20 mm and detection height of 440 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Housing made of aluminum with PMMA front screen
- Enclosure rating IP65 and IP67
- LED display and circuit protection with reverse polarity and short-circuit protection
- Operating range of 5 m with maximum range of 7 m
- Response time of 3.6 ms
- RS-485 interface with baud rate 9.6 kbit/s and data transmission rate 1.2 kbit/s to 921.6 kbit/s
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Dust- and sunlight-resistant design enhances durability and reduces waste
- Low power consumption for sender and receiver reduces energy use
- Long service life minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MLG20N-0440U10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
