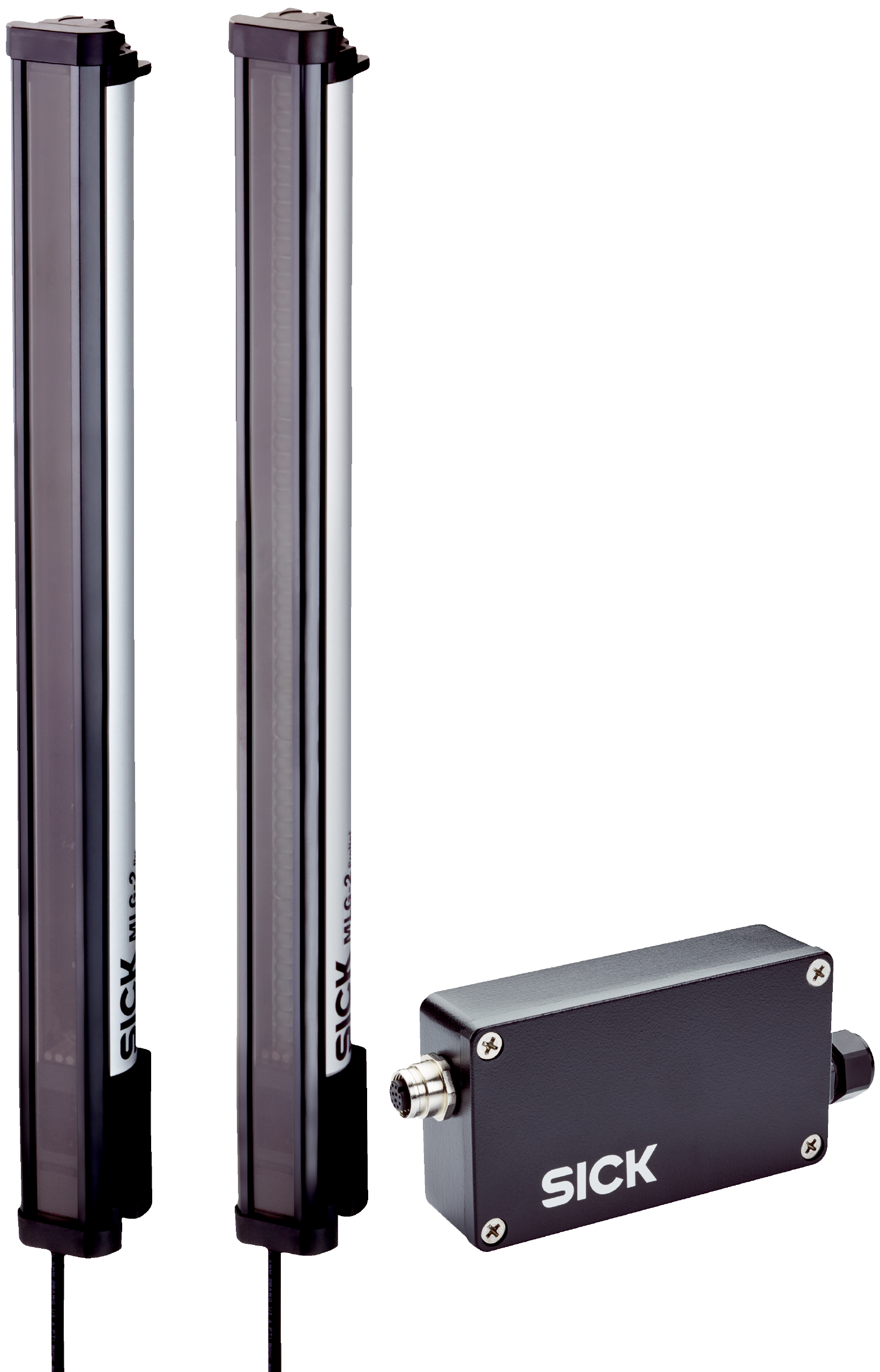

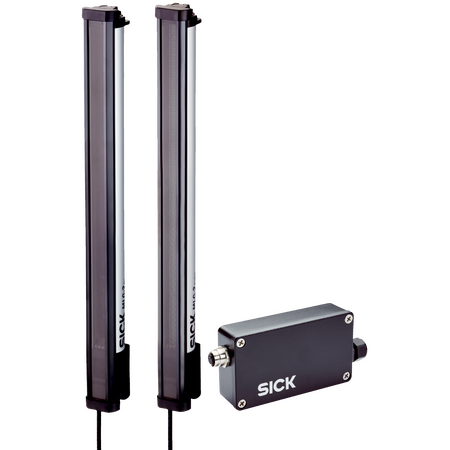

MLG20N-1180U10801 | Automation light grids
The SICK MLG20N-1180U10801 Automation Light Grid is a high-precision sensor system designed for object detection, measurement, and classification with robust features including dust and sunlight resistance and multiple operating modes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG20N-1180U10801 | Automation light grids
Brand: SICK
SKU: 1222865
Alternatively Known As: Automation light grid, safety light curtain, object detection light grid, SICK light grid sensor
Technical Specifications
- Device version: ProNet replacement for MLG-1 with terminals
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Number of beams: 60
- Detection height: 1180 mm
- Interface: RS-485 with 9.6 kbit/s baud rate
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions: Cross beam, beam blanking, high-speed scan, high measurement accuracy
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58 mA
- Power consumption receiver: 132 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Dimensions (H x L x W): 1180mm x 50mm x 50mm
- Weight: 2.65 kg
Key Features
- ProNet replacement product for MLG-1 with terminals
- Sender/receiver sensor principle with 60 beams
- Minimum detectable object size of 20 mm
- Beam separation of 20 mm and detection height of 1180 mm
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- Interface RS-485 with baud rate 9.6 kbit/s
- Push-pull PNP/NPN switching output
- LED infrared light source with 850 nm wavelength
- Enclosure rating IP65 and IP67
- Housing made of aluminum with PMMA front screen
- Circuit protection including reverse polarity and short-circuit protection
- Shock resistance up to 15 g and vibration resistance 5 g
- Ambient operating temperature from -30°C to +55°C
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition and data interface applications
