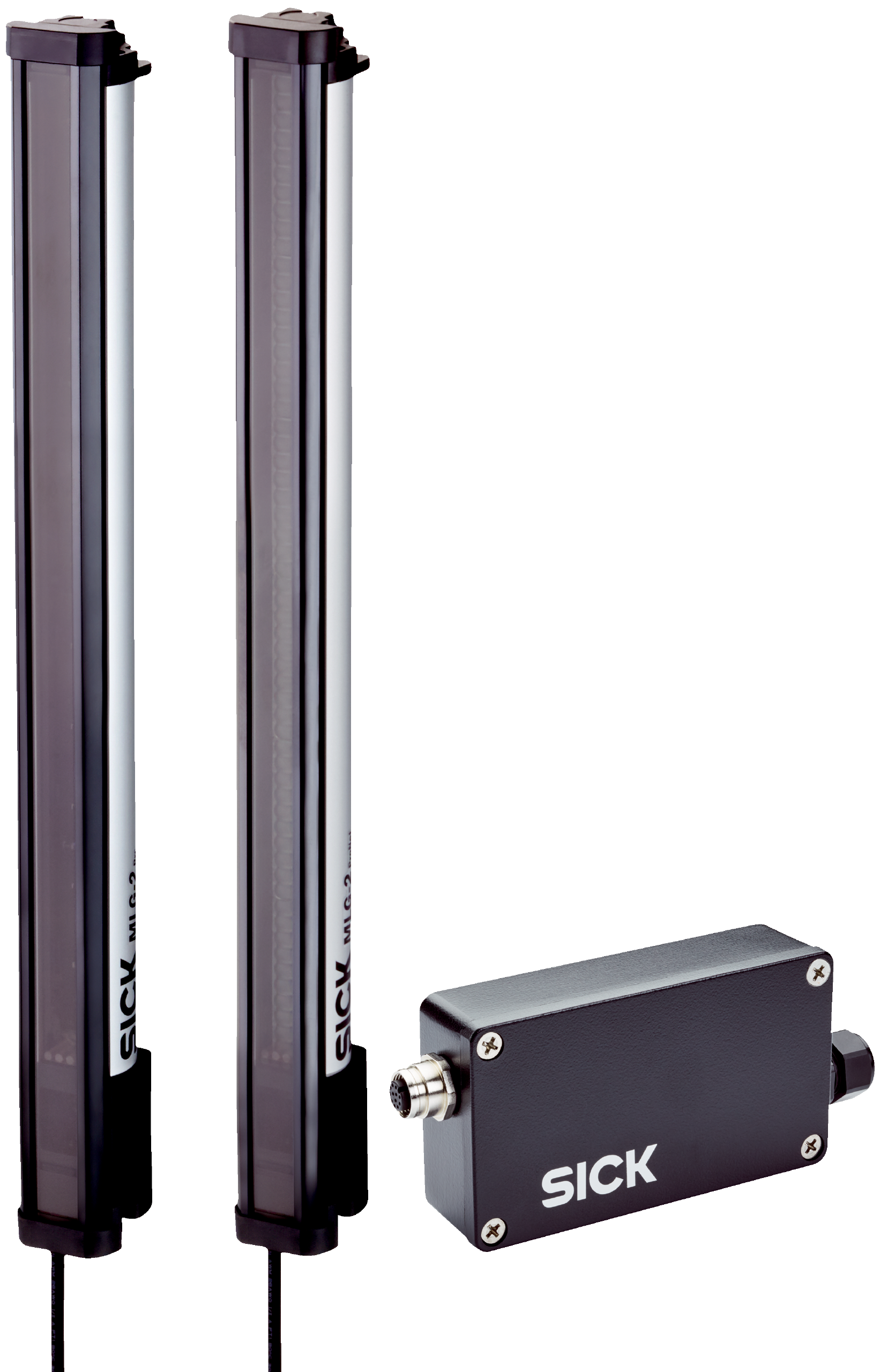

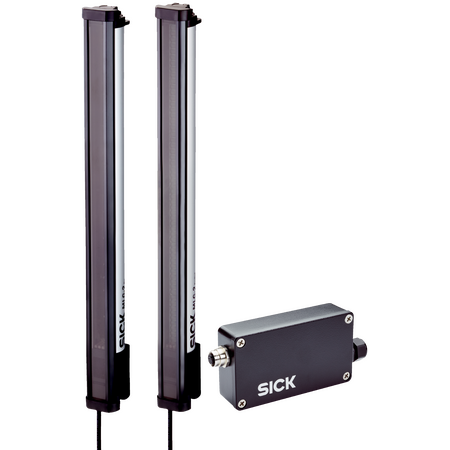

MLG20N-3140U10501 | Automation light grids
The SICK MLG20N-3140U10501 Automation Light Grid is a high-precision sensor system designed for object detection, measurement, and classification with robust features including dust and sunlight resistance and multiple output options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG20N-3140U10501 | Automation light grids
Brand: SICK
SKU: 1107372
Alternatively Known As: Automation light grid, safety light curtain, object detection light grid, SICK light grid sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Number of beams: 158
- Minimum detectable object: 20 mm
- Detection height: 3,140 mm
- Operating range: 5 m
- Maximum range: 7 m
- Response time: 13.5 ms
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 62.9 mA
- Power consumption receiver: 151.6 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Enclosure rating: IP65, IP67
- Protection class: III
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- Ambient operating temperature: -30°C to +55°C
- Ambient storage temperature: -40°C to +70°C
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Dimensions (H x L x W): 3140mm x 150mm x 1000mm
- Weight: 6.5 kg
Key Features
- ProNet device version, replacement for MLG-1 with terminals
- Sender/receiver sensor principle with 158 beams
- Minimum detectable object size of 20 mm
- Detection height of 3,140 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67
- Housing made of aluminum with PMMA front screen
- RS-485 interface with baud rate 9.6 kbit/s
- Digital outputs Q1 to Q6 and digital inputs In1 and In2
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition and data interface applications
