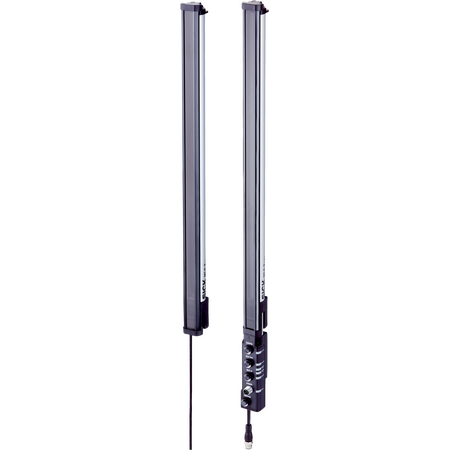

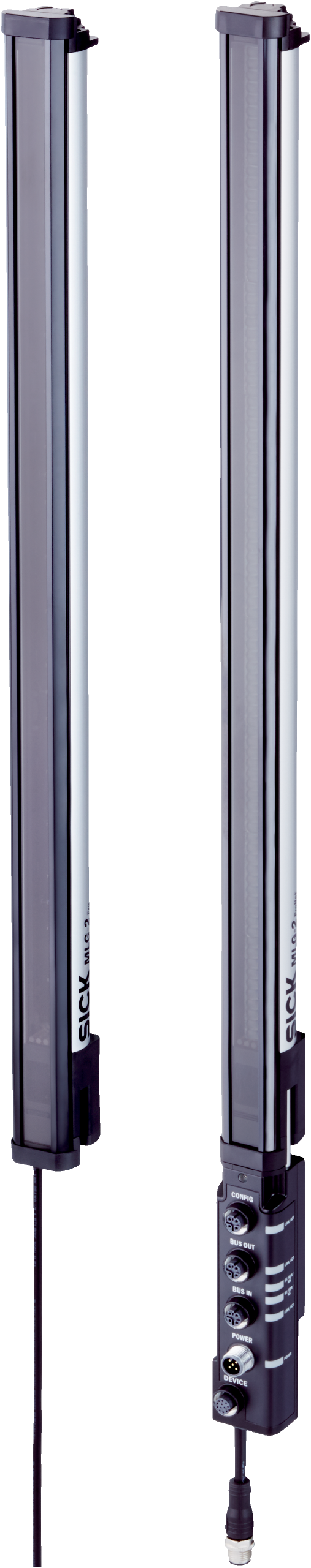

Product Name/Title: MLG30N-1170H10501 | Automation light grids
Brand: SICK
SKU: 1217905
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light grid sensor, Object detection light grid
Technical Specifications
- Device version: ProNet with extended fieldbus functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 30 mm to 34 mm
- Number of beams: 40
- Beam separation: 30 mm
- Detection height: 1170 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 57 mA
- Power consumption receiver: 128 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: under 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- EMC: EN 60947-5-2
- Ambient operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Response time: 4.4 ms
- Maximum range: 7 m
- Operating range: 5 m
- Digital outputs: 1
- Dimensions (H x L x W): 1170mm x 50mm x 100mm
- Weight: 2.65 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size of 30 mm to 34 mm
- 40 beams with 30 mm beam separation
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Enclosure rating IP65 and IP67 for robust protection
- Push-pull PNP/NPN switching output
- Aluminum housing with PMMA front screen
- Fast initialization time under 1 second
- EtherNet/IP™ interface supported
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial automation and electrical safety standards to ensure proper setup and compliance.
Applications
- Object detection and object width measurement
- Object recognition
- Height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP65/IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG30N-1170H10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection and measurement.
