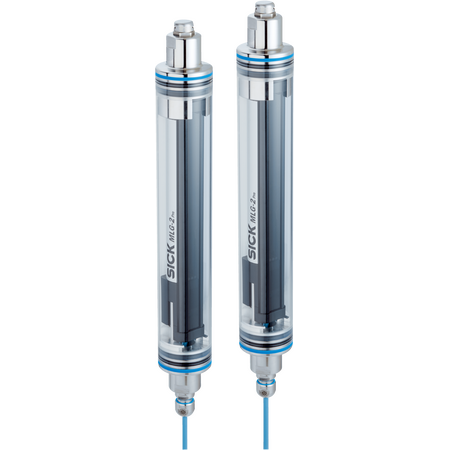

MLG50A-1000B50501 | Automation light grids

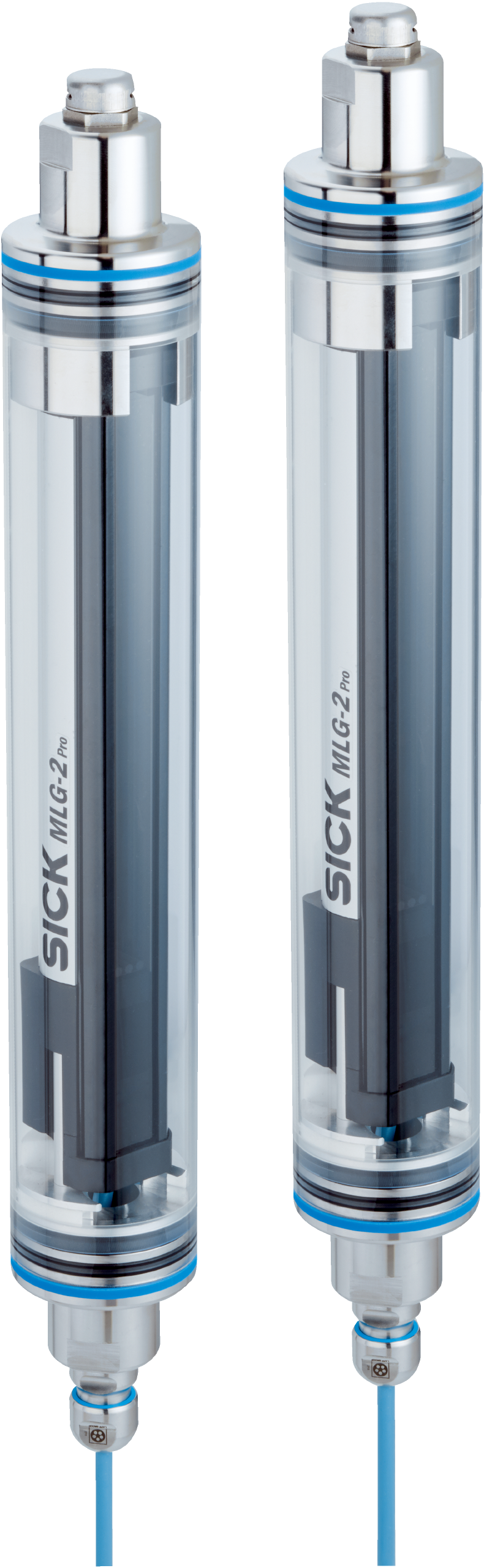

The SICK MLG50A-1000B50501 Automation Light Grid is a high-precision sensor system designed for object detection, measurement, and classification in industrial automation with robust IP69K protection and advanced software features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG50A-1000B50501 | Automation light grids
Brand: SICK
SKU: 1134765
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Industrial Light Grid Sensor
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 50 mm
- Beam separation: 50 mm
- Number of beams: 21
- Detection height: 1,000 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 57 mA
- Power consumption receiver: 125 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 8-pin male connectors
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 5.25 m
- Operating range: 3.75 m
- Response time: 3.5 ms
- Interfaces: IO-Link V1.1, Analog current output 4 mA to 20 mA
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -20°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 100mm x 100mm x 1000mm
- Weight: 2.66 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 21 beams
- Minimum detectable object size of 50 mm
- Detection height of 1,000 mm
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP69K rated enclosure for harsh environments
- LED display for status indication
- Circuit protection including reverse polarity and short-circuit protection
- Supports IO-Link V1.1 and analog current outputs
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation by qualified automation or electrical professionals is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP69K rated housing reduces need for frequent replacements
- Energy-efficient LED infrared light source minimizes power consumption
- Robust design reduces electronic waste through extended product life
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK MLG50A-1000B50501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
