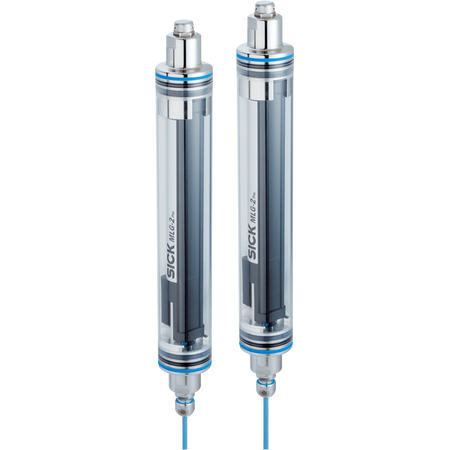

MLG50A-2050B50801 | Automation light grids
The SICK MLG50A-2050B50801 Automation Light Grid offers advanced object detection and measurement capabilities with 42 beams, high accuracy, and robust IP69K protection for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG50A-2050B50801 | Automation light grids
Brand: SICK
SKU: 1111545
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Industrial Light Grid Sensor, Object Detection Light Grid
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 50 mm
- Beam separation: 50 mm
- Number of beams: 42
- Detection height: 2,050 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 57.1 mA
- Power consumption receiver: 128.4 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 8-pin connectors
- Housing material: Aluminum, PMMA Plexiglas XT, polypropylene, stainless steel
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 8.8 m
- Operating range: 6.3 m
- Response time: 4.6 ms
- IO-Link V1.1 support with 230.4 kbit/s data rate
- Analog current output: 4 mA to 20 mA
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -20°C to +55°C
- Dimensions (H x L x W): 2050mm x 100mm x 1000mm
- Weight: 4.76 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle
- 42 beams with 50 mm beam separation
- Detection height of 2,050 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP69K rated enclosure for harsh environments
- Cable synchronization type
- IO-Link V1.1 and analog current outputs
- Robust aluminum housing with stainless steel and polypropylene components
- Short initialization time under 1 second
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP69K rated housing reduces replacement frequency and waste
- Energy-efficient LED infrared light source minimizes power consumption
- Robust design suitable for harsh environments reduces environmental impact from frequent repairs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG50A-2050B50801 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
