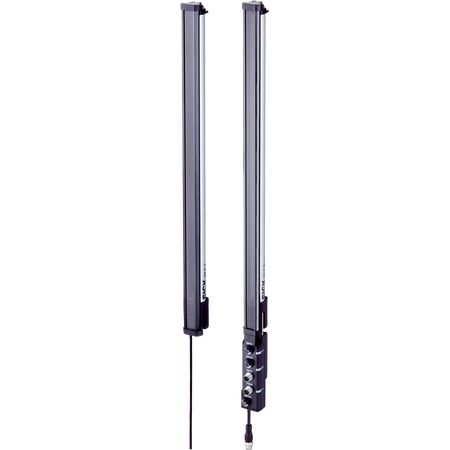

MLG50N-2050P10502 | Automation light grids

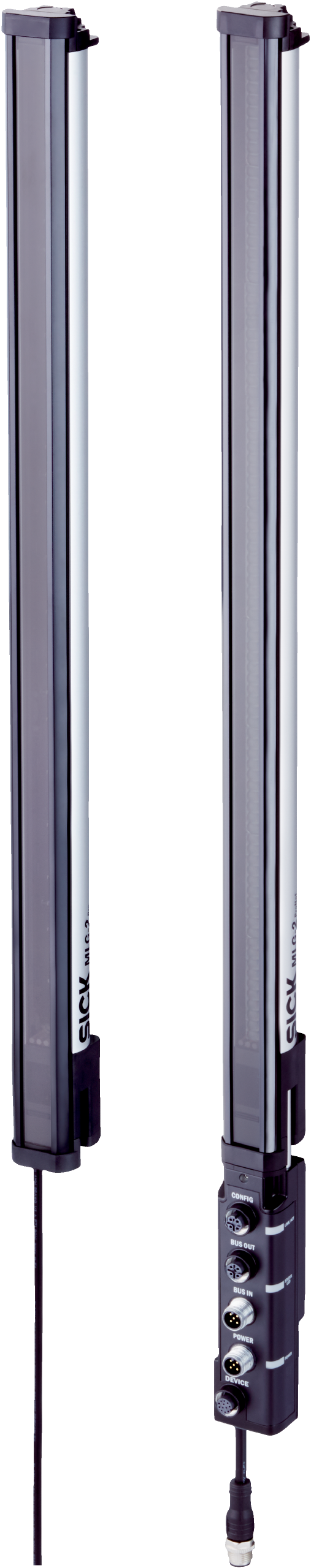

The SICK MLG50N-2050P10502 Automation Light Grid offers precise object detection and measurement with 42 beams, robust aluminum housing, and advanced fieldbus communication for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG50N-2050P10502 | Automation light grids
Brand: SICK
SKU: 1121587
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light grid sensor, Object detection light grid
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 50 mm
- Number of beams: 42
- Detection height: 2050 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 57.1 mA
- Power consumption receiver: 128.4 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Enclosure rating: IP65, IP67
- Response time: 4.6 ms
- Operating range: 5 m
- Maximum range: 7 m
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- Dimensions (H x L x W): 2050mm x 100mm x 1000mm
- Weight: 4.45 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size of 50 mm
- 42 beams with 50 mm beam separation
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Supply voltage DC 19.2 V to 28.8 V
- Push-pull PNP/NPN switching output
- Housing made of aluminum with PMMA front screen
- Enclosure rating IP65 and IP67
- Short initialization time under 1 second
- Fieldbus module included with quick fix brackets
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Dust- and sunlight-resistant design enhances reliability and reduces maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG50N-2050P10502 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
